06.12.2011

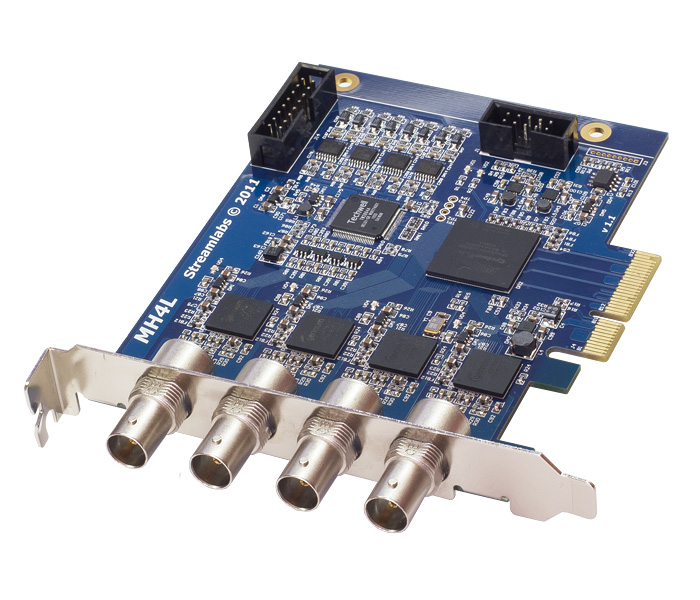

New MH4L HD-SD OEM Multichannel AV-signal input card released!

We are glad to announce a new MH4L HD-SD OEM Multichannel AV-signal input card.

This card can be used as a basis for creating multichannel studio recording and slow motion replay systems, monitoring and TV broadcast recording systems (loggers), multichannel visual TV broadcast monitoring systems (multiviewers), rear-projection systems and multi-camera virtual studios, etc.



Key features:

-- Program switching standards DVB-ASI/SD-SDI/HD-SDI/CVBS for each input

-- Analog video Standards Support NTSC(M/4.43) /PAL(B/D/G/H/I/K/L/M/N/60)/SECAM

-- Number of analog audio stereo capture inputs: 4

-- Capture analog audio in 24 bit/48êHz

-- ASI: Specification Compliance DVB-ASI (coax) EN50083-9; Rx bitrate 0- 214Mbit/s

-- SDI: Specification Compliance SMPTE 259M, SMPTE 292M, SMPTE 372M, ITU-R BT.656 and ITU-R BT.601

-- board supported SD-standards 625/25 PAL, 525/29.97 NTSC, 525/23.98 NTSC

-- board supported HD-standards 720p50, 720p59.94, 720p60720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60, 1080i50, 1080i59.94, 1080i60

Software supported:



-- Freeware:

-- Stream MultiView -- is designed for simultaneous visual monitoring of multiple sources of video and audio signal in real time on a computer monitor (plasma, LCD-TV). Stream MultiView allows users to display 2-4 incoming SD-SDI/composite A/V streams (MS2, MS4 cards), 4 SD/HD-SDI streams (MH4 card), or 16 analog video/audio streams (FX416 card).

-- Stream ASI2IP -- allows users to capture a transport stream from the ASI supported cards (Wind SDI 2, MS2/MS4) input and broadcast over IP. The program supports multiple network adapters.

-- Paid software:

-- Stream MultiScreen – multi-channel monitoring system provides real time control of several video and audio signal sources simultaneously on computer screen / plasma / LCD-television set. Stream MultiScreen has ability to control 24 video inputs, error detectioncontrol, connection to LAN, which allows to join several devices in a single network and fully control them from any workstation, user-friendly interface with various graphic design functions.

The MH4L HD-SD card is the most cross functional Multichannel AV-signal input card on the market.

And more good news – Very attractive price!
