Stream MultiScreen Specifications

Video inputs (BNC):
  • Composite version — up to24 (multiple of 4) Composite video inputs (525/60 (NTSC), 625/50 (PAL), 625/50 (SECAM)
  • SDI version — up to 16 (multiple of 8) auto-detectable Composite video inputs  (525/60 (NTSC), 625/50 (PAL), 625/50 (SECAM) or SD-SDI (SMPTE 259M-C-1997 standards))
Audio inputs (RCA):
  • Composite version — up to 24 (multiple of 4) analog stereo channels
  • SDI version — up to 16 (multiple of 8) analog stereo channels and/or embedded SD-SDI stereo channels (SMPTE 272M & ITU-R BT.1305). Audio source selection: analog stereo audio or embedded SDI with stereo pair selection option
TALLY function:
(reaction on shorting the relevant pair of contacts)
          Yes

Hardware

Stream MultiScreen hardware and software suite is a personal computer with Windows XP Pro operating system, which is equipped with special image and sound insertion cards, and relevant software.

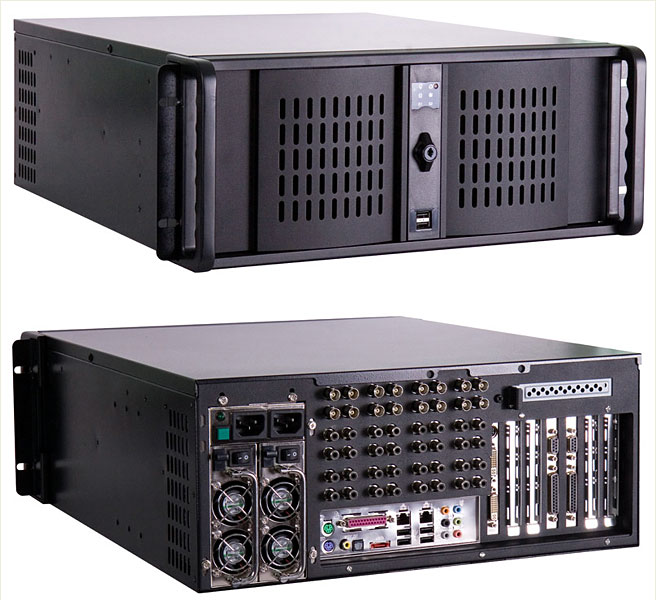

The system is delivered in RACK mountable 4U MS-4800 W/O PSU 528mm (BLACK) cases with modified back panel and dual redundant, hot-swappable PSU.

The software for forming and editing configurations, network device control and operation register viewing can be installed on any computer and has no license number restriction.
