MPEG TS streams playback and control system

Testimonials

The Stream Labs platform offers us a kind of quality not reached before with any other cards. It presents us with excellent sales opportunities for our software.

Jorge Gandulfo, Director (VEAS, Argentina)

Stream MultiScreen TS Specifications

Input signal: 1 Gbit/s speed Ethernet with IEEE 802.1Q VLAN and IEEE 802.1p QoS support	IP multicast groups, containing MPEG-2 single-program transport stream with TV-programs compressed to MPEG-2 and MPEG-4 / H.264 standards. The number of simultaneously displayed channels is limited only by server processing power
Video outputs:	VGA output – 1600 x 1200 pixels HDMI / DVI-I (DVI-D) output – 1920x1080 pixels (Full HD) or 1920 x 1200 pixels (computer resolution) CVBS / S-Video / YUV (RCA)
Audio outputs (RCA):	One of the monitored audio channels can be played through the device sound card (miniJack Stereo)
TALLY function: (reaction on shorting the relevant pair of contacts)	Yes

Hardware

Stream MultiScreen TS hardware and software complex is a personal computer with Windows XP Pro operating system and relevant software. The number of simultaneously displayed and controlled IP multicast groups is defined by the system processor speed.

We have developed an optimal configuration, which provides:

Simultaneous playback of 20 programs minimum in standard SD resolution;
Signal decoding by MPEG-4 / H.264 for 12 groups minimum simultaneously;
Display frequency of 25 frames per second minimum for each group;
0,5 sec. maximum latency for signal intake on system input and image display on monitor / LCD panel;
Output resolution 1920 x 1080 and 1920 x 1200 pix on monitor/LCD panel. VGA, DVI, HDMI interfaces.

The hardware consists of:

Server RACK 2U case, PSU 460 watt, rack mounting rails;
Processor — Intel Core 2 Quad Q6600 2,4 GHz;
Motherboard — Intel 3000 chipset;
Memory — 2 GB DIMM DDR PC2-5300 ECC;
Video adapter — PCI-E 256 MB;
Hard disk — 250 GB SATA 7200 HS;
Floppy drive;
DVD-drive.

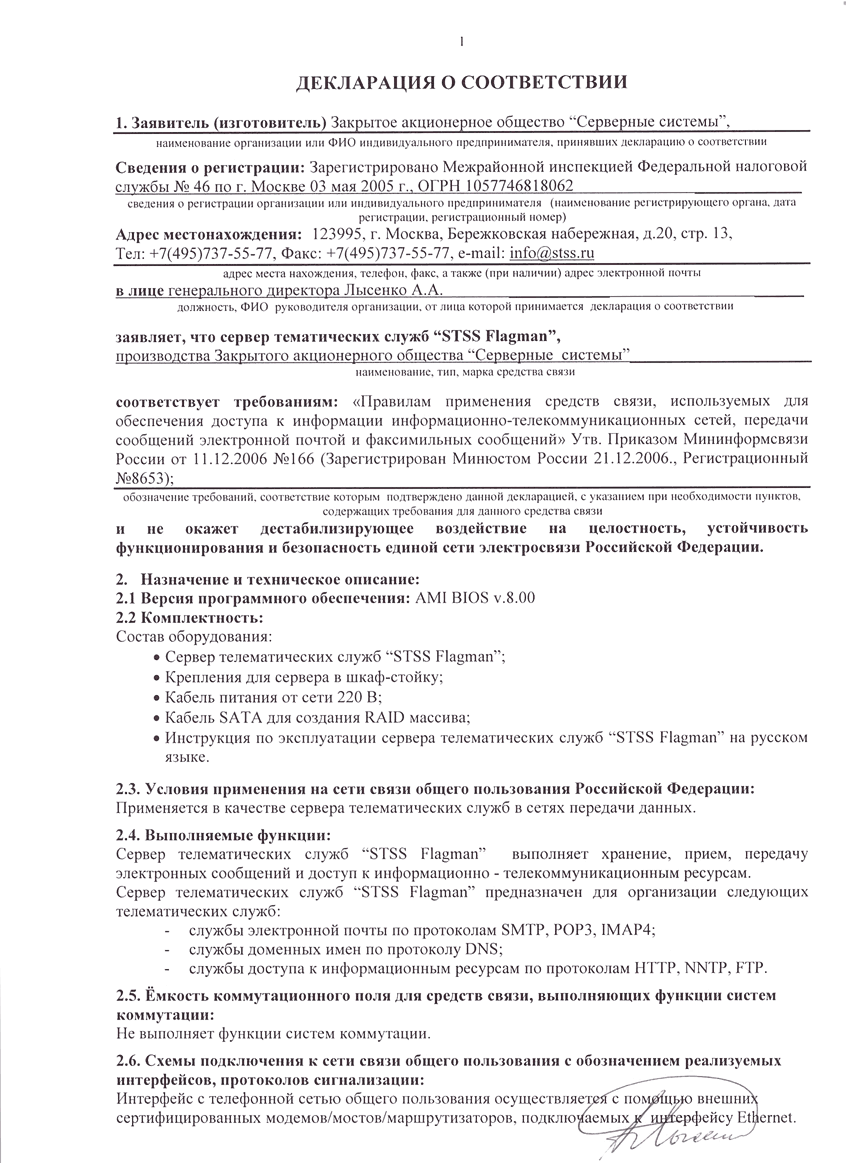

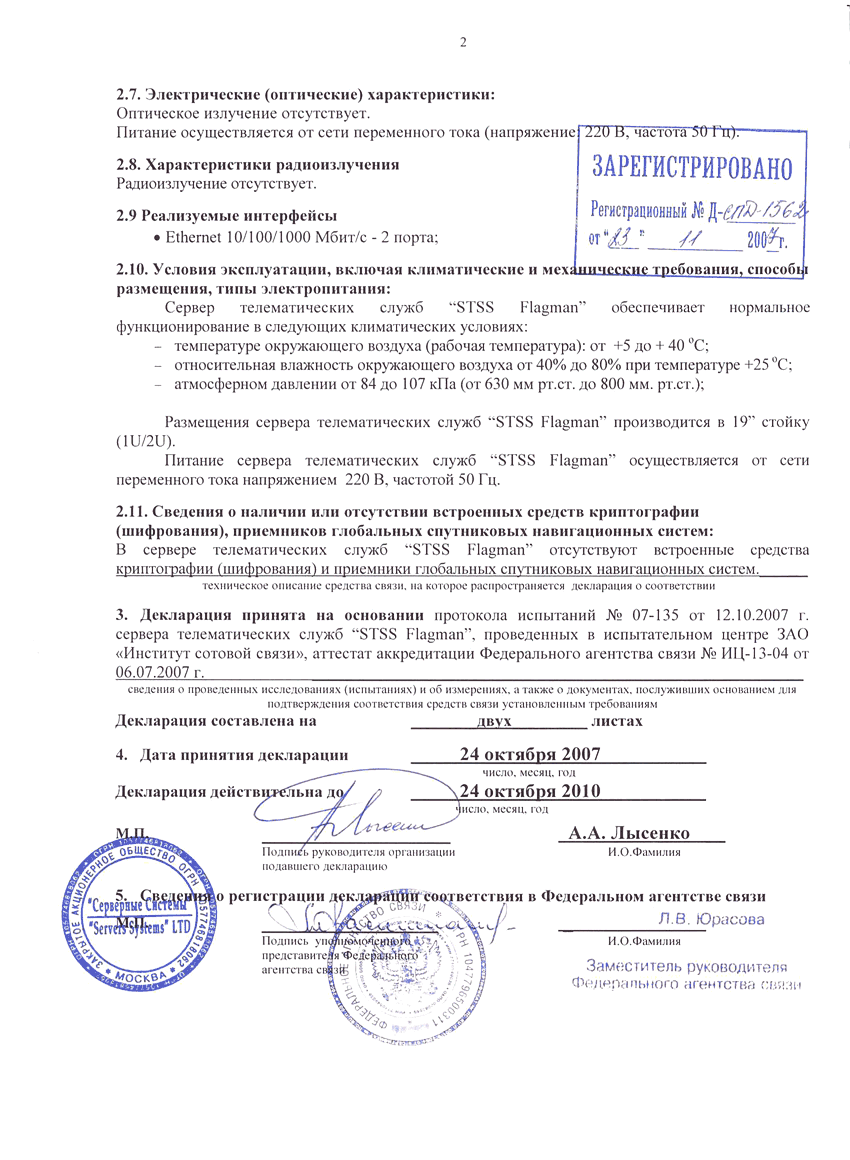

Stream MultiScreen TS hardware is assembled on the platform of STSS Flagman servers, which possess the Certificate of Ministry of Communications of the Russian Federation (page 1, page 2).

The software for forming and editing configurations, network device control and operation register viewing can be installed on any computer and has no license number restriction.
