12.3 Alarms Widgets

Alarms widgets provide various ways to visualize and interact with alarm events — from tabular views and timelines to topology diagrams and pie charts. Most of these widgets are designed to work in combination with the Time range widget (see Section 12.1) and optionally with other context-providing widgets such as Location filter or State panel.


Alarms Table

The Alarms table widget displays a fully customizable table of alarm events for monitoring objects. It always requires a linked Time range widget, plus additional widgets depending on the selected operating mode.

Operating Modes

The operating mode is set using the Alarms by field in the widget parameters:

Mode Description Required companion widgets
Locations Shows alarm events for a selected location Location filter (12.3), Time range (12.1)
Specific object Shows alarm events for a single monitoring object Time range (12.1)
State panel Shows alarm events for objects in a selected state panel State panel (12.1), Time range (12.1)
Video wall panel Shows alarm events for objects in a selected video wall Video wall panel (12.1), Time range (12.1)

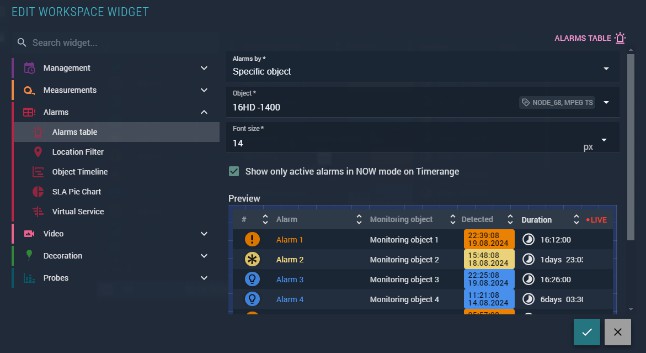

Figure 290. Alarms table widget parameters Figure 290. Alarms table widget parameters

Parameters

Table 62. Alarms table widget parameters

Parameter Applicable modes Description
Font size All Font size of the alarm events table
Object Specific object The monitoring object whose alarm events are shown
State panel State panel The state panel whose alarm events are shown
Video wall Video wall panel The video wall whose alarm events are shown
Show only active alarms in NOW mode on Timerange All When enabled, only currently active alarms are shown when the linked Time range widget is set to the NOW position

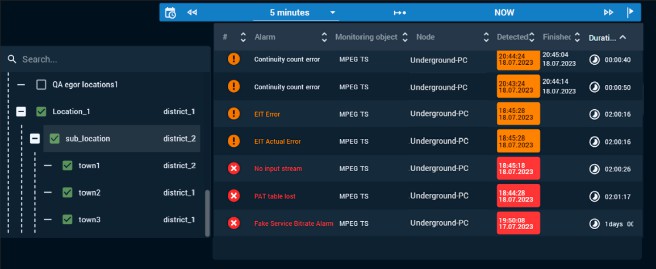

Figure 291. Alarms table in Location mode (Location filter on the left) Figure 291. Alarms table in Location mode — Location filter widget (left) and Alarms table widget (right)

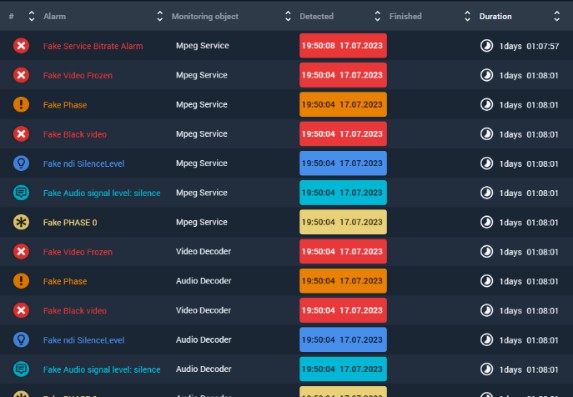

Figure 292. Alarms table in Specific object mode Figure 292. Alarms table in Specific object mode


Location Filter

The Location filter widget displays the location tree from the MultiProbe configuration and acts as a filter controller for compatible widgets in the same workspace — primarily the Alarms table widget. When a user selects a location in this widget, the linked widgets automatically update to show data for that location.

The widget has no configurable parameters.

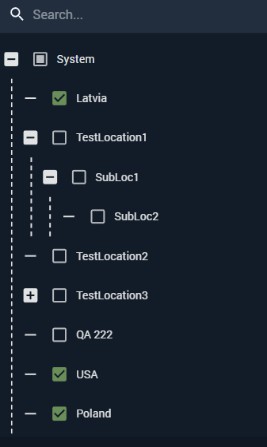

Figure 293. Location filter widget visualization Figure 293. Location filter widget visualization


Object Timeline

The Object timeline widget visualizes alarm event history for a monitoring object as a color-coded horizontal timeline. The color of each segment corresponds to the alarm priority at that time, following the scale defined in Section 5.3. The widget requires a linked Time range widget.

To configure the widget, select the monitoring object from the list (Figure 294).

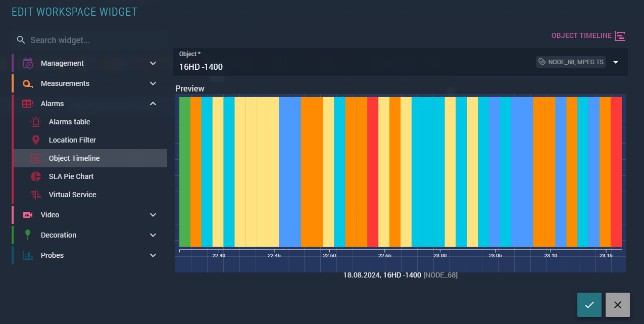

Figure 294. Object timeline widget parameters Figure 294. Object timeline widget parameters

Hovering over any point on the timeline displays a tooltip with details about the alarm event at that time.

Figure 295. Object timeline widget visualization Figure 295. Object timeline widget visualization


Scheme

The Scheme widget displays a topology diagram along with the real-time statuses of the objects it contains. This is useful for visualizing the state of a monitored infrastructure in a graphical, layout-based format.

The diagram can be displayed in two modes:

  • Detail diagram view — includes object names and full-size icons.
  • Compact diagram view — shows reduced icons without object names, useful for high-density diagrams.

To configure the widget, select the diagram and the desired display mode (Figure 296). Enable Show mini map to display a reduced overview map in the bottom-right corner of the widget — this is helpful for navigating large diagrams that extend beyond the visible area. The mini map can be toggled on or off at any time using the dedicated button during visualization.

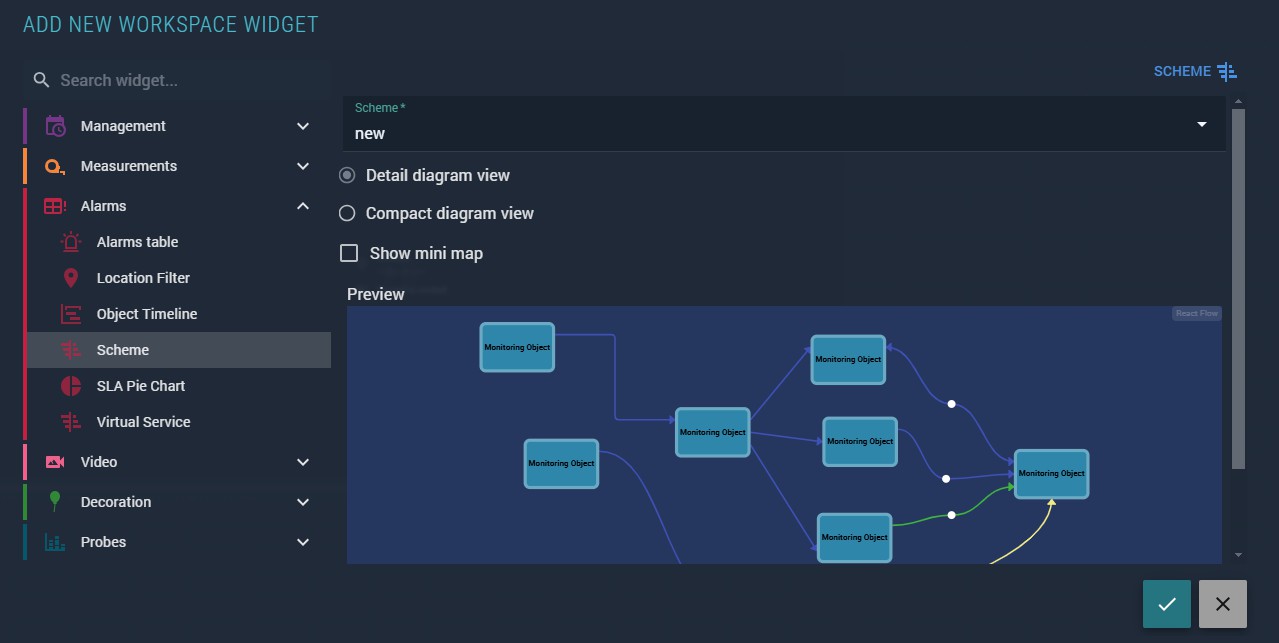

Figure 296. Scheme widget parameters Figure 296. Scheme widget parameters

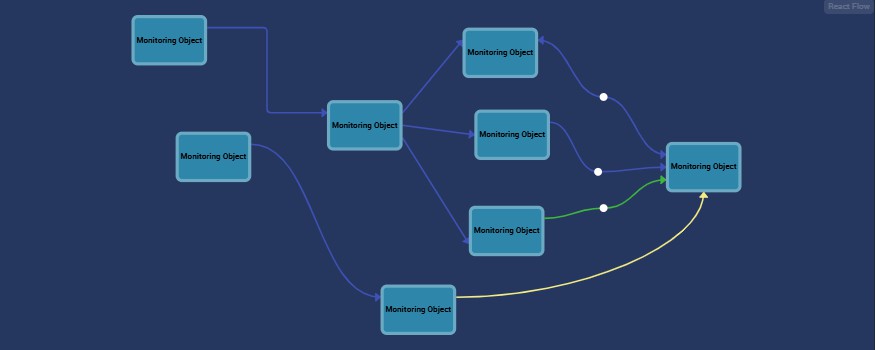

Figure 297. Scheme widget visualization Figure 297. Scheme widget visualization


SLA Pie Chart

The SLA pie chart widget shows the distribution of alarm event states over a selected time period as a pie chart. It is used for SLA reporting and at-a-glance reliability assessments for monitoring objects or virtual services. The widget requires a linked Time range widget.

To configure the widget, select the type of object to analyze — Monitoring objects or Virtual service — using the corresponding tab, then choose the specific object (Figure 298).

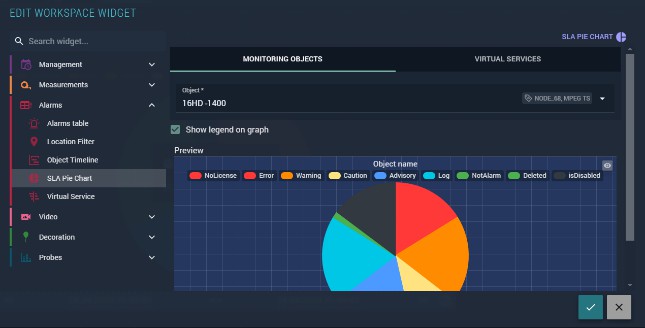

Figure 298. SLA Pie Chart widget parameters Figure 298. SLA Pie Chart widget parameters

In the visualization, hovering over a chart segment displays a tooltip with details about the corresponding alarm state. Click any entry in the legend to include or exclude that alarm state from the statistics. The legend can be toggled on or off using the legend button.

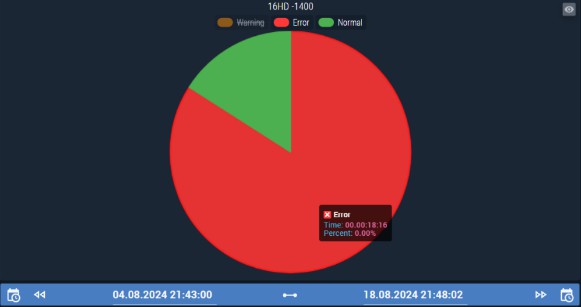

Figure 299. SLA Pie Chart widget visualization Figure 299. SLA Pie Chart widget visualization


Virtual Service

The Virtual service widget displays the topology of a virtual service along with the real-time statuses of its component objects. It works similarly to the Scheme widget but is specific to virtual services configured in MultiProbe.

The visualization supports two display modes:

  • Detail diagram view — shows object names and full-size icons.
  • Compact diagram view — shows reduced icons without names.

To configure the widget, select the virtual service and the desired display mode (Figure 300). Enable Show mini map to display a navigation overview in the bottom-right corner, which can be toggled on or off during visualization.

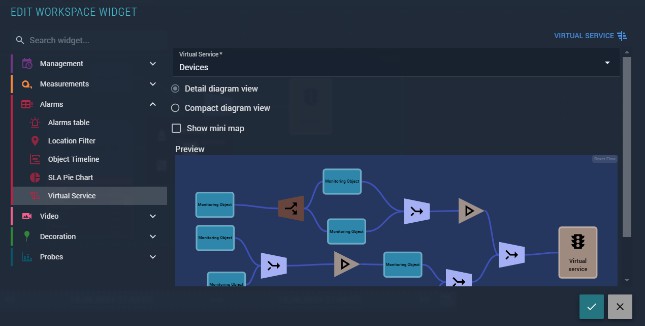

Figure 300. Virtual service widget parameters Figure 300. Virtual service widget parameters

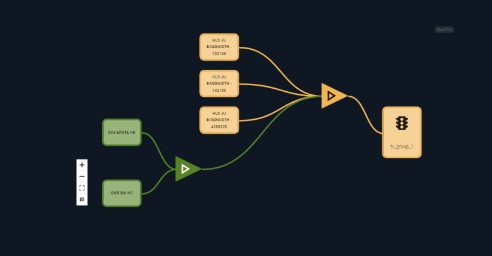

Figure 301. Virtual service widget visualization Figure 301. Virtual service widget visualization
