2.6 Post-Installation Setup

Verifying the Installation

Perform this verification after completing all steps in Sections 2.3–2.5.

The installation is considered successful if:

  • The deployment matches the planned monitoring scheme
  • The AWS can connect to the Central Server
  • All Monitoring Nodes are visible in the CS GUI
  • No error messages related to installation or network access are present

To verify:

  1. Open a browser on the AWS or directly on the Central Server
  2. Navigate to the MultiProbe GUI address configured during Frontend Service installation (default: http://localhost:2020)
  3. Log in with the default credentials: SystemAdmin / SystemAdmin

  4. Go to Administration → Nodes

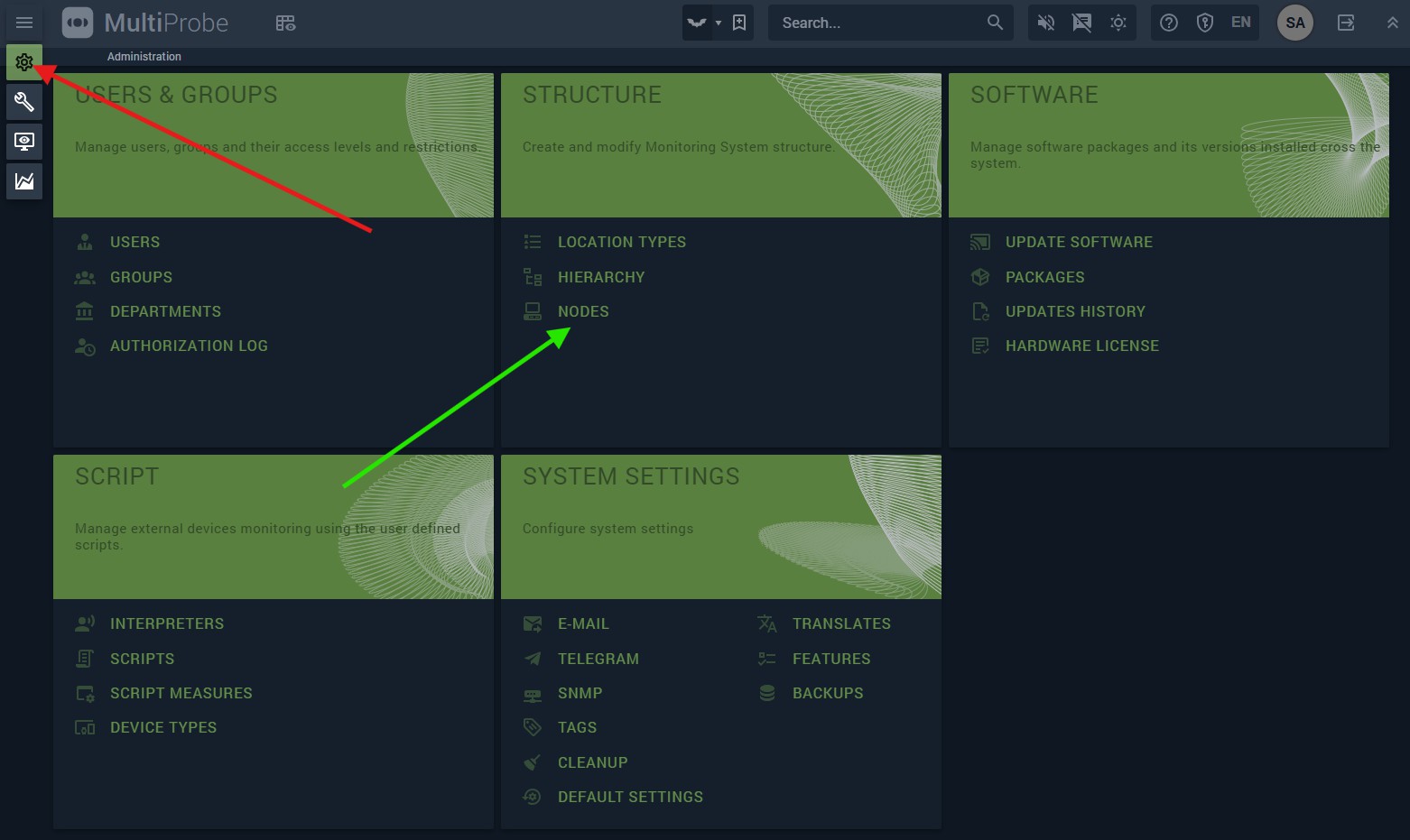

    Figure 14. Nodes section on the Administration screen Figure 14. Nodes section on the Administration screen

  5. Confirm that all nodes appear in the list and their information is correct

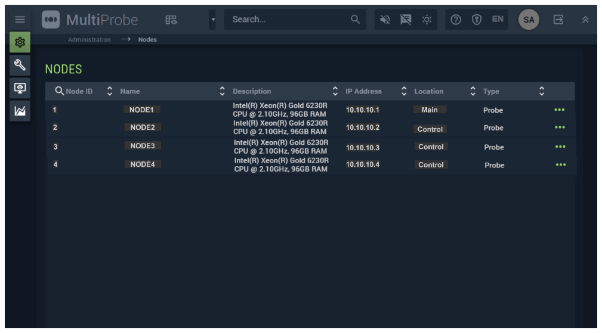

    Figure 15. Example of Nodes list Figure 15. Example of Nodes list

Info

The Location column will be empty at this stage — this is expected. Locations are configured during the initial setup step below.

Initial Configuration

After successful verification, perform the initial configuration in the following order:

  1. Configure the system structure — locations, departments, node assignments (Section 4.2)
  2. Set up adjacent systems — mail server, Telegram, SNMP, time server (Section 4.5)
  3. Configure users and access — user groups, roles, permissions (Section 4.1)
  4. Configure templates — decoder, service, and signal templates (Section 5.2)
  5. Configure alarm event templates (Section 5.3)
  6. Configure recording templates (Section 5.4)
  7. Create monitoring objects according to the monitoring scheme (Section 5.1)
  8. Create status panels and mosaic screens (Section 6.4, Section 6.5)
  9. Create workspaces and place widgets (Section 6.2)

License Information

Third-Party Licenses

To view information about third-party libraries used in MultiProbe, click toolbar button on the toolbar. The screen shows component versions and library details:

  • Component name and version
  • License type
  • Copyright holder
  • Repository link
  • License file download link

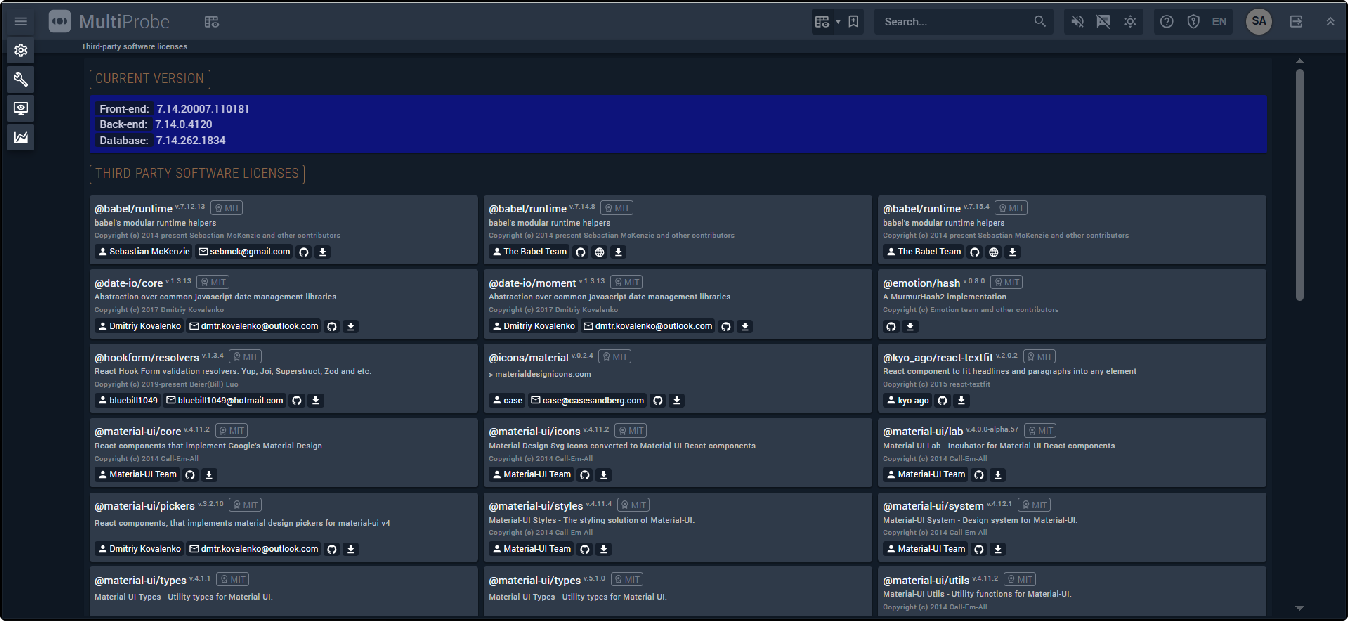

Figure 16. Third-party license information Figure 16. Third-party license information window

Stream Labs Licenses

To view and manage Stream Labs licenses for MultiProbe, click toolbar button on the toolbar.

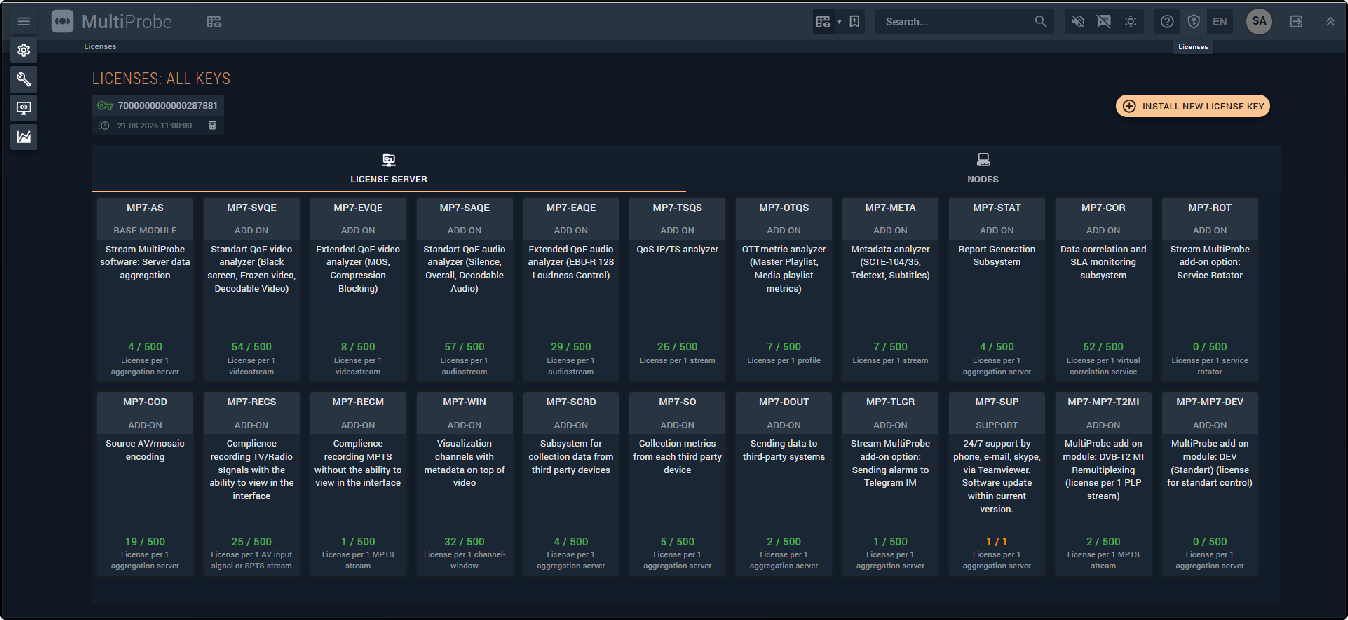

Figure 17. MultiProbe license information Figure 17. MultiProbe license information window

The screen shows the license key file number, installation date, and two tabs:

  • License server — licenses installed on the Central Server
  • Nodes — licenses distributed to Monitoring Nodes

Each license entry includes its designation, type (Base, Add-on, Support), and description.

To install a new license:

  1. Obtain the license file from Stream Labs
  2. Click Install new license
  3. Drag and drop the license file into the upload window
