2.7 General Installer
The General Installer is an alternative to installing services individually. It contains a complete set of packages for all MultiProbe components and supports multiple installation modes — making it the recommended approach for most deployments.
The installer is supplied as a .zip archive with the following naming convention:
Stream Labs MultiProbe X.X.X.XXX.zip
Example: Stream Labs 7.12.6.975.zip

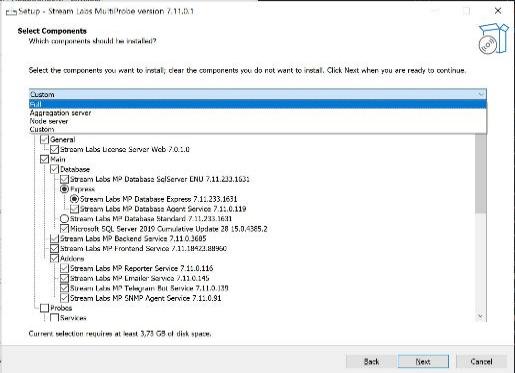

Figure 18. Stream Labs 7.12.6.975.zip version of the package installer
Installation Modes
| Mode | Description |
|---|---|
| Full | The server acts as both an aggregation server (Database, Frontend, Backend) and a Node (analysis, processing, visualization, recording) |
| Aggregation Server | The server acts as the Central Server only |
| Node Server | The server acts as a Monitoring Node only |
| Custom | Selective installation of individual components |
Installation Settings

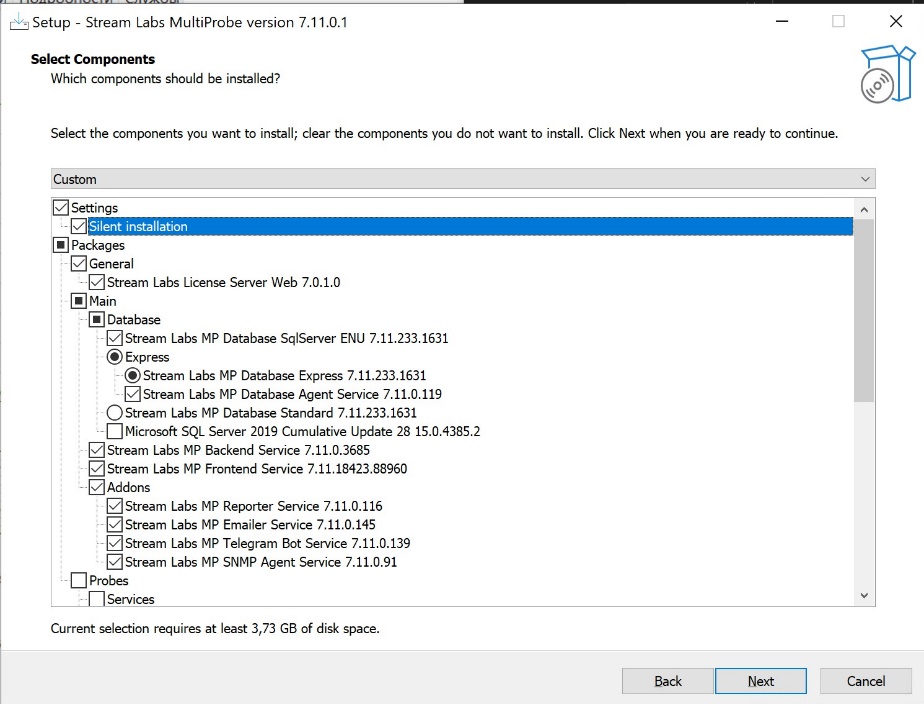

Figure 19. Installation Settings
Silent Installation — when enabled, all selected packages are installed automatically without user interaction.
Warning
- For the initial installation, Silent mode must be disabled so that required parameters (database credentials, ports, Node ID) can be configured manually
- For updates and reinstallation, Silent mode can be enabled for faster deployment
Package Structure
Figure 20. Package Settings
General — common packages for any server type
| Package | Description |
|---|---|
| Stream Labs License Server Web | Provides licenses for the MultiProbe system |
Main — Central Server packages
Database:
| Package | Description |
|---|---|
| Stream Labs MP Database SQL Server ENU | Installs SQL Server — required for initial installation |
| Stream Labs MP Database Express | Express database — up to 10 GB storage |
| Stream Labs MP Database Agent Service | Auto-cleaning service for Express database only |
| Stream Labs MP Database Standard | Standard database — up to 100 GB storage |
| Microsoft SQL Server XXXX Cumulative Update | Cumulative update for SQL Server |
Core:
| Package | Description |
|---|---|
| Stream Labs MP Backend | Core backend service |
| Stream Labs MP Frontend | Web interface service |
Add-ons (optional):
| Package | Description |
|---|---|
| Stream Labs MP Reporter Service | Report generation |
| Stream Labs MP Emailer Service | Email notifications |
| Stream Labs MP Telegram Bot Service | Telegram notifications |
| Stream Labs MP SNMP Agent Service | SNMP notifications |
Probes — Node Server packages
Services:
| Package | Description |
|---|---|
| Stream Labs MP Probe Manager Service | Registers the Node in the database |
| Stream Labs MP Guard Service | Manages services — start, reboot, shutdown, and server restart handling |
| Stream Labs MP App Manager Service | Manages MultiProbe applications |
| Stream Labs MP Media Signal Service | Receives, analyzes, and visualizes input streams |
| Stream Labs MP OTT Service | Receives and performs QoS analysis of OTT streams |
| Stream Labs MP Rotator Service | Handles object rotation and rotation synchronization |
| Stream Labs MP Script Probe Service | Executes scripts and logs metrics to the database |
Applications:
| Package | Description |
|---|---|
| Stream Labs MP Video Display | Mosaic visualization on a local display |
| Stream Labs MP Audio Player | Audio playback on a local audio output device |
| Stream Labs MP Encoder | Media encoding and broadcasting |
| Stream Labs MP Exporter | Viewing and exporting recordings |
| Stream Labs MP Recorder | Reference recording of objects to storage |
| Stream Labs MP Remuxer | Extracts SPTS from MPTS for subsequent recording |
| Stream Labs MP DVBTuner | Receives ASI, DVB-T/T2, DVB-S/S2, DVB-C streams |
Tools (optional):
| Package | Description |
|---|---|
| Stream Labs MP VSDK-GPU | GPU library required for the artifact analyzer |
| Blackmagic Desktop Video Installer | Driver and SDK for Blackmagic capture boards |
| Stream Labs MP SDK And Tools | SDK for Stream Labs capture boards |
| Stream Labs MP SlDriver Streaming Driver | Driver for Stream Labs capture boards |
Important Notes
- Packages are installed in the order they appear in the component list
- After installation, all packages are unpacked to:
C:\Program Files\Stream Labs\MultiProbe\Stream Labs MultiProbe\installersIndividual installers can be launched from this folder if needed - Uninstallation removes only the unpacked directory and the Stream Labs MultiProbe entry — installed components themselves are NOT removed
Installation Recommendations
Initial installation:
- Disable Silent installation
- Install on the Aggregation Server:
- Stream Labs MP Database SQL Server ENU
- Stream Labs MP Database Express or Standard
- Stream Labs MP Database Agent Service (Express only)
- Microsoft SQL Server Cumulative Update
- Stream Labs MP Backend
- Stream Labs MP Frontend
- Install on each Node Server:
- Stream Labs MP Probe Manager Service
- Restart all servers after installation is complete
Reinstallation or first-time installation of additional packages:
Silent installation mode can be enabled for faster deployment.
