3.4 Main Menu

After a successful login, the MultiProbe working screen appears in the browser.

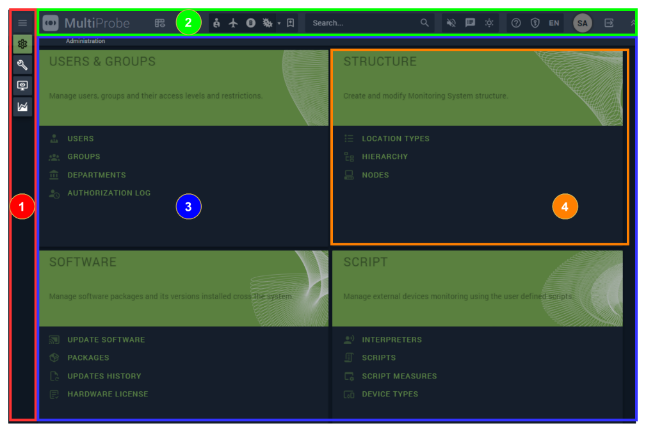

Figure 27. Sections of the screen Figure 27. Sections of the screen

The working screen is divided into four areas:

№ Area Description
1 Main Menu Switches between the four main functional screens
2 Toolbar Quick access to bookmarked functions and pages
3 Working Area Displays menu sections or the active function screen
4 Menu Sections Visible when the working area shows a menu — contains items that open specific function screens

The main menu provides access to four screens:

Icon Screen Purpose
Administration System settings, reference books, adjacent system configuration
Configuration Templates for monitoring objects, data processing, alarms, recording, visualization, and streaming
Status Viewing monitoring results and active alarm states
Retrospectives Archive browsing — alarm event history, reports, and recordings

Administration Screen

Section Description
Users & Groups Users, groups, departments, and the user activity log — Section 4.1
Structure Nodes, locations, and location hierarchy — Section 4.2
Software Component upgrades and license management — Section 4.3
Script Script management — Section 4.4
System settings Database, adjacent systems, and system configuration — Section 4.5

Configuration Screen

Section Description
Monitoring objects & virtual services Monitoring objects, virtual services, schemes, UMD sources — Sections 5.1, 5.5–5.7
Alarms & notifications templates Alarm event and notification templates — Section 5.3
Workspaces & layouts Workspaces, layouts, and state panels — Sections 6.2–6.4
Visualization Mosaics, video walls, audio players — Sections 6.5–6.7
Measurement presets Decoder, signal component, and signal templates — Section 5.2
Restreaming & recordings Streaming and recording templates — Sections 5.4, 7

Status Screen

Section Description
Monitoring state Workspaces, layouts, virtual service statuses, schemes, state panels, active alarms — Sections 8.3–8.8
Live video Live stream and mosaic viewing — Sections 8.9–8.10

Retrospectives Screen

Section Description
Analytics Alarm event history — Section 9.2
Reports Report generation, viewing, and distribution — Section 9.3
Recordings Recording archive, fragment downloads, playback settings — Section 9.4
