5.1 Monitoring Objects
General Information
Basic concepts — monitoring objects, templates, and presets — are introduced in Section 1. This section covers the practical steps for creating and configuring monitoring objects.
Before configuring a monitoring object, prepare the following presets:
- Measurement preset — see Section 5.2
- Alarm message preset — see Section 5.3
- Recording preset (if recording is needed) — see Section 5.4
It is recommended to create the required presets in advance, but they can also be configured and assigned after the monitoring object is created — or even directly during its configuration.
When working with monitoring objects, the following actions are performed:
- Create, edit, or delete a monitoring object.
- Specify a data source (e.g., a multicast stream address). Source parameters vary depending on the object type.
- Assign presets: measurement, alarm, and recording.
Monitoring objects are managed from two screens: the Monitoring objects screen and the Monitoring object configuration screen — both described in Section 5.1.2.
The configuration screen contains both common settings (applicable to all object types) and type-specific settings. Configuration details for each object type are described in Sections 5.1.3–5.1.14.
Monitoring Objects Screen
To manage monitoring objects, open the Configuration screen and select Monitoring objects & virtual services.

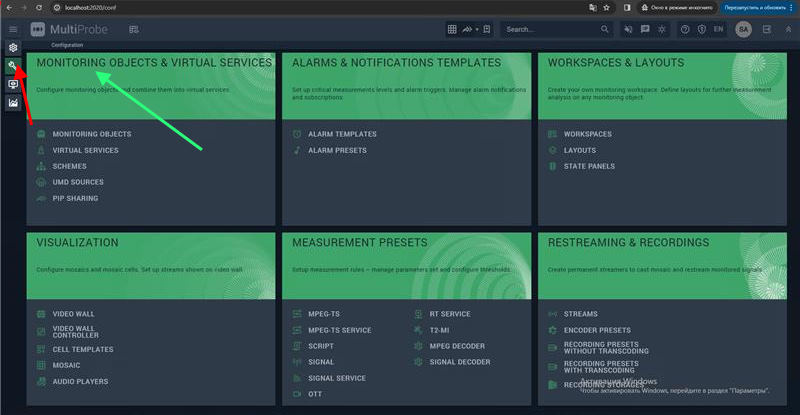

Figure 76. Monitoring objects management menu
This opens the Monitoring objects screen.

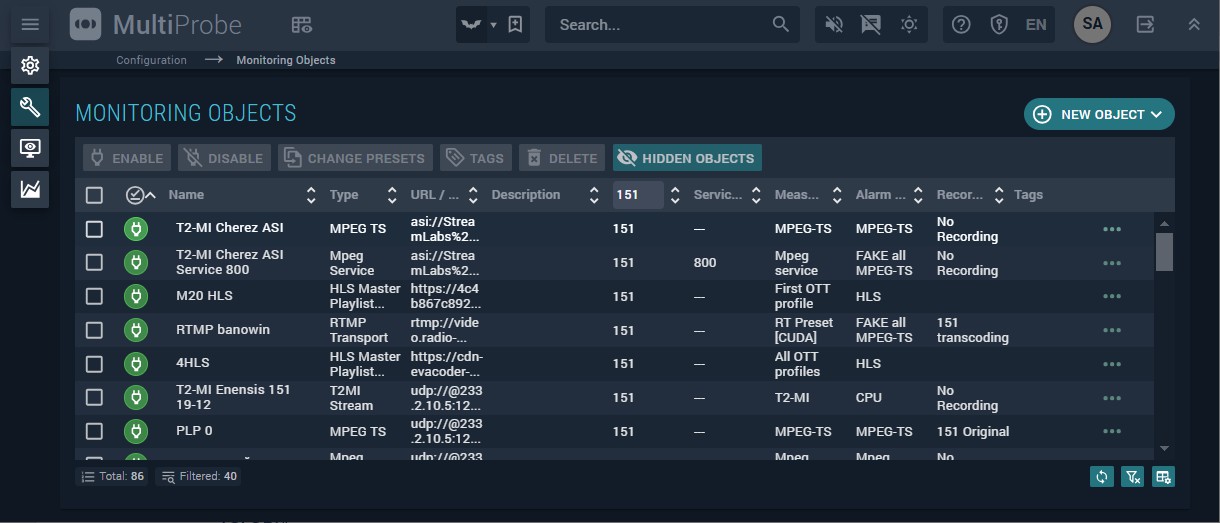

Figure 77. Monitoring objects screen
Object List Columns
The table displays all monitoring objects with the following columns:
| Column | Description |
|---|---|
| Enabled/Disabled | Toggle to temporarily disable a monitoring object without deleting it |
| Name | User-defined name of the object |
| Type | Object type (see Table 3 for descriptions) |
| URL/IP address | Stream address — for stream-type objects only; not shown for signals |
| Node | Node running the MultiProbe service for this object (see Table 6) |
| Service ID | Service identifier from the PAT table of the MPEG TS stream, if available |
| Measurement preset | Selected measurement preset (see Section 5.2) |
| Alarm preset | Selected alarm preset (see Section 5.3) |
| Recording preset | Selected recording preset (see Section 5.4) |
| Tags | Assigned tags (see Section 4.5.4) |
Each row has a selection checkbox
on the left for use with group operations.
Group Operations
Buttons above the table header apply actions to all selected objects:
- Enable — activate monitoring for selected objects.
- Disable — deactivate monitoring. Disabled objects are hidden from the list unless Hidden objects is toggled on.
- Change presets — batch-change presets for selected objects.
- Tags — assign or modify tags for selected objects.
- Delete — permanently remove selected objects.
Note
When enabling, disabling, or deleting monitoring objects, the State Panel on any currently open pages does not update automatically. Refresh the page (F5) to reflect the changes.
Changing Presets in Bulk
Selecting Change presets opens the group preset change window.

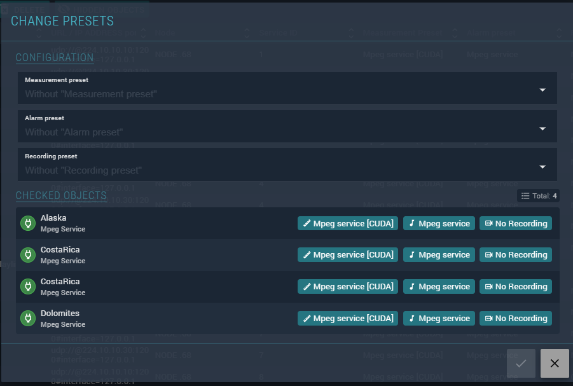

Figure 78. Group preset change window
In the Configuration section, choose the presets to apply. The Checked objects section shows the currently selected objects and their existing presets. After selecting new presets, save — the changes will be applied and reflected in the object list.
Managing Tags in Bulk
Select the objects you want to tag, then click Tags. A pop-up window appears showing the tags already assigned to the selected objects, plus a searchable drop-down list for adding new ones. Multiple tags can be selected simultaneously.
- Tags selected from the drop-down appear in the input field and are removed from the available options list.
- Each tag in the input field has a checkbox for individual removal; the ✖ button clears all selected tags at once.
- If the selected objects share some common tags but also have unique ones, common tags are shown in full while unique tags appear as ....
Tag inheritance rules
- Tags assigned to a T2MI object are inherited by its child objects.
- For MPEG TS objects, tags are not propagated to the parent object.
- For HLS/MPEG-DASH objects, tags are assigned to EthernetTransport and propagated to SoftwareStream and Mpeg Service objects.
Creating and Editing Monitoring Objects
To create a new monitoring object:
- Click New object in the upper-right corner.

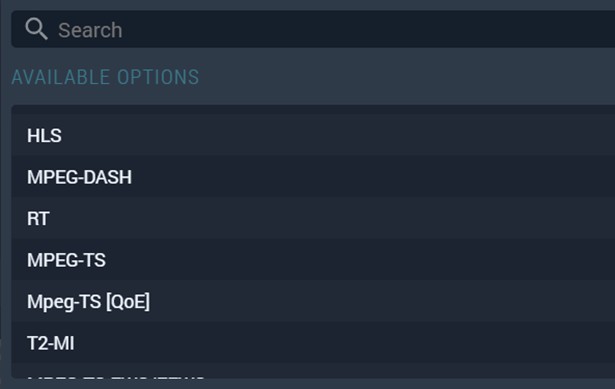

- Select the object type from the drop-down list.
- Fill in the parameters in the configuration window that opens, then save.
To edit an existing object, select it from the list to open its configuration screen.
Monitoring Object Configuration Window
The configuration window opens when you create a new object or select an existing one for editing. Its appearance varies by object type. The example below shows the configuration window for an MPEG TS service type object.
The window consists of two sections:
- Monitoring object settings — highlighted in red.
- Preset settings — highlighted in green.

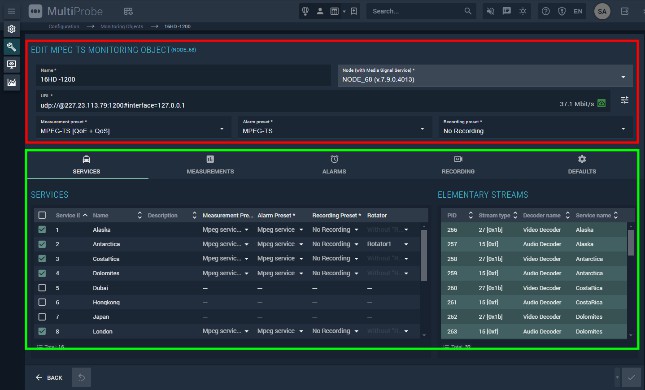

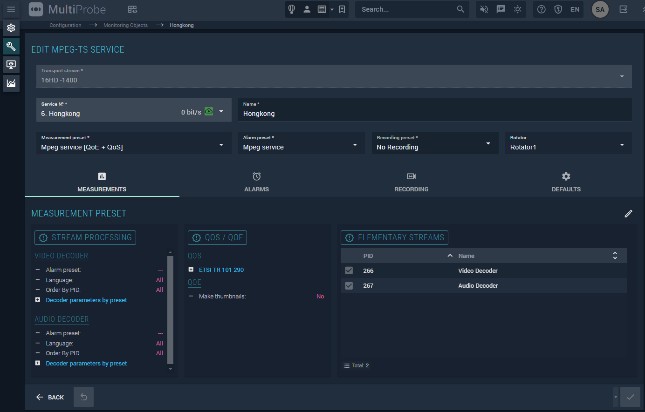

Figure 79. Configuration screen — MPEG TS service type
Type-specific configuration details are covered in Sections 5.1.3–5.1.14.
Configuration of the HLS Object
The HLS monitoring object is used to monitor OTT streams compliant with the HLS specification (RFC 8216).
Use the Monitoring objects screen to create or select an object for editing, and the Monitoring object configuration screen to edit it — both described in Section 5.1.2.

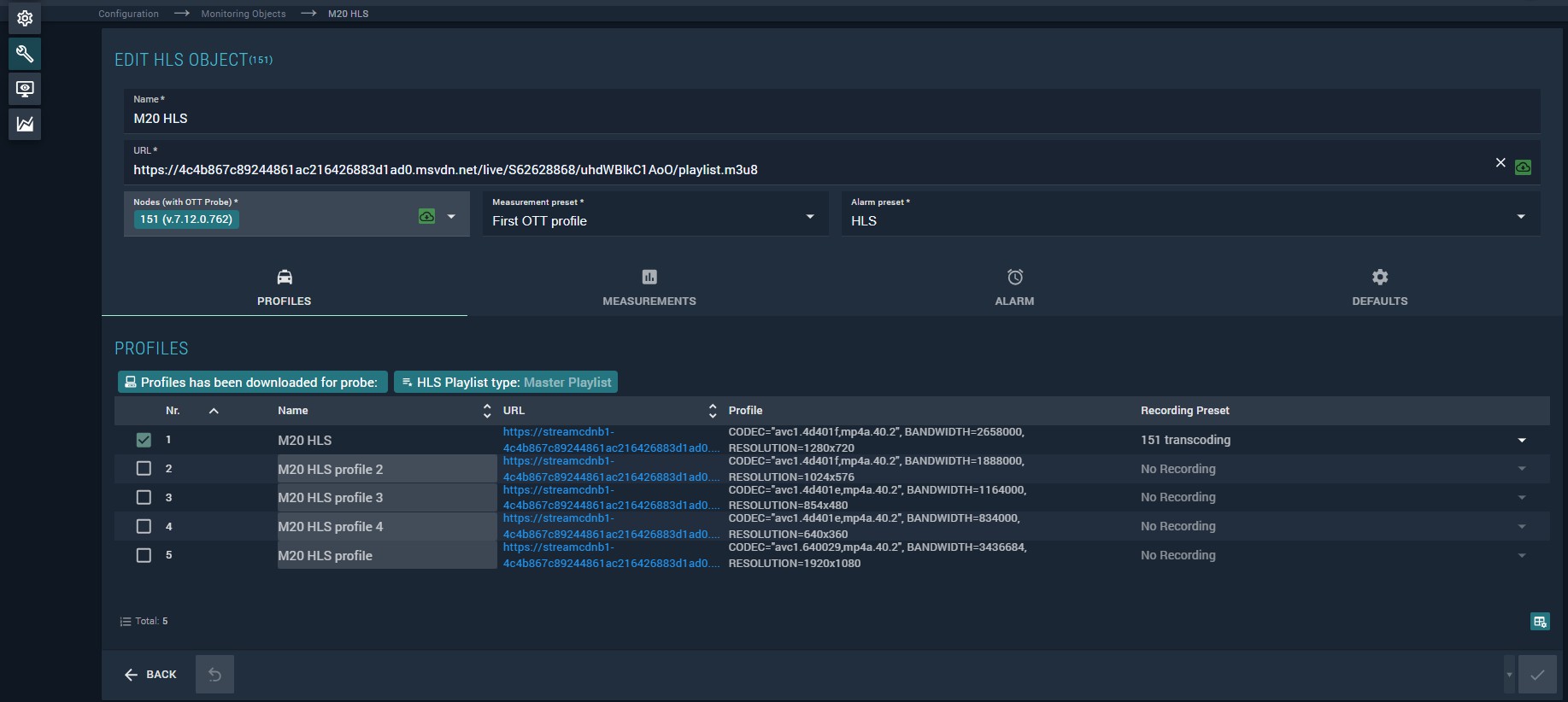

Figure 80. HLS Monitoring Object configuration screen
Object Settings
| Parameter | Description |
|---|---|
| Name | User-defined name for the monitoring object |
| URL | HLS stream address (HTTP server and playlist). A checkmark icon  appears if the profile loads successfully |
| Node | MultiProbe node running the monitoring service. Select from the list |
| Measurement preset | Select from the list — see Section 5.2 |
| Alarm preset | Select from the list — see Section 5.3 |
Preset Settings Tabs
Profiles — lists profiles loaded from the HLS source. Profile parameters are read-only except for the recording preset, which allows selective recording of specific profiles. Each profile entry shows:
- Nr. — profile number per the server playlist.
- Name — user-editable profile name.
- URL — playlist link; click to open in the browser.
- Profile — profile content per HLS specification (decoder requirements, bitrate, image size).
- Recording preset — select a recording preset; defaults to No recording.
Measurements — displays the selected measurement preset and its parameters.
Click
to edit.
Alarms — displays the selected alarm preset and its parameters.
Click to edit.
Defaults — additional metadata:
- Description — free-form description.
- Tags — assign tags; see Section 4.5.4.
- Included in virtual services — list of virtual services that include this object. Objects are added to virtual services during virtual service configuration (see Section 5.5).
Configuration of the MPEG-DASH Object
The MPEG-DASH monitoring object is used to monitor OTT streams compliant with the MPEG-DASH specification (ISO/IEC 23009).
Use the Monitoring objects screen and Monitoring object configuration screen (both described in Section 5.1.2) to create or edit objects.

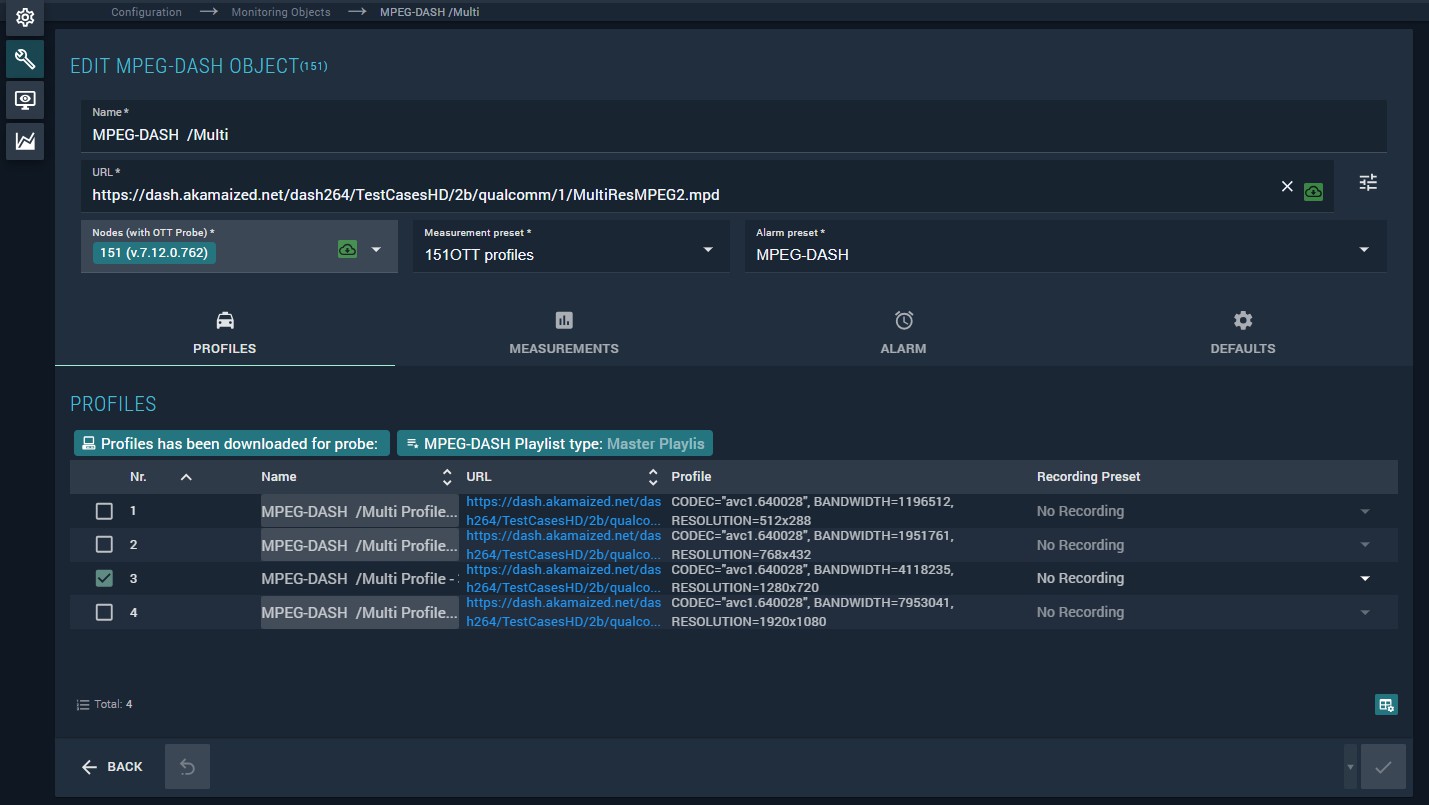

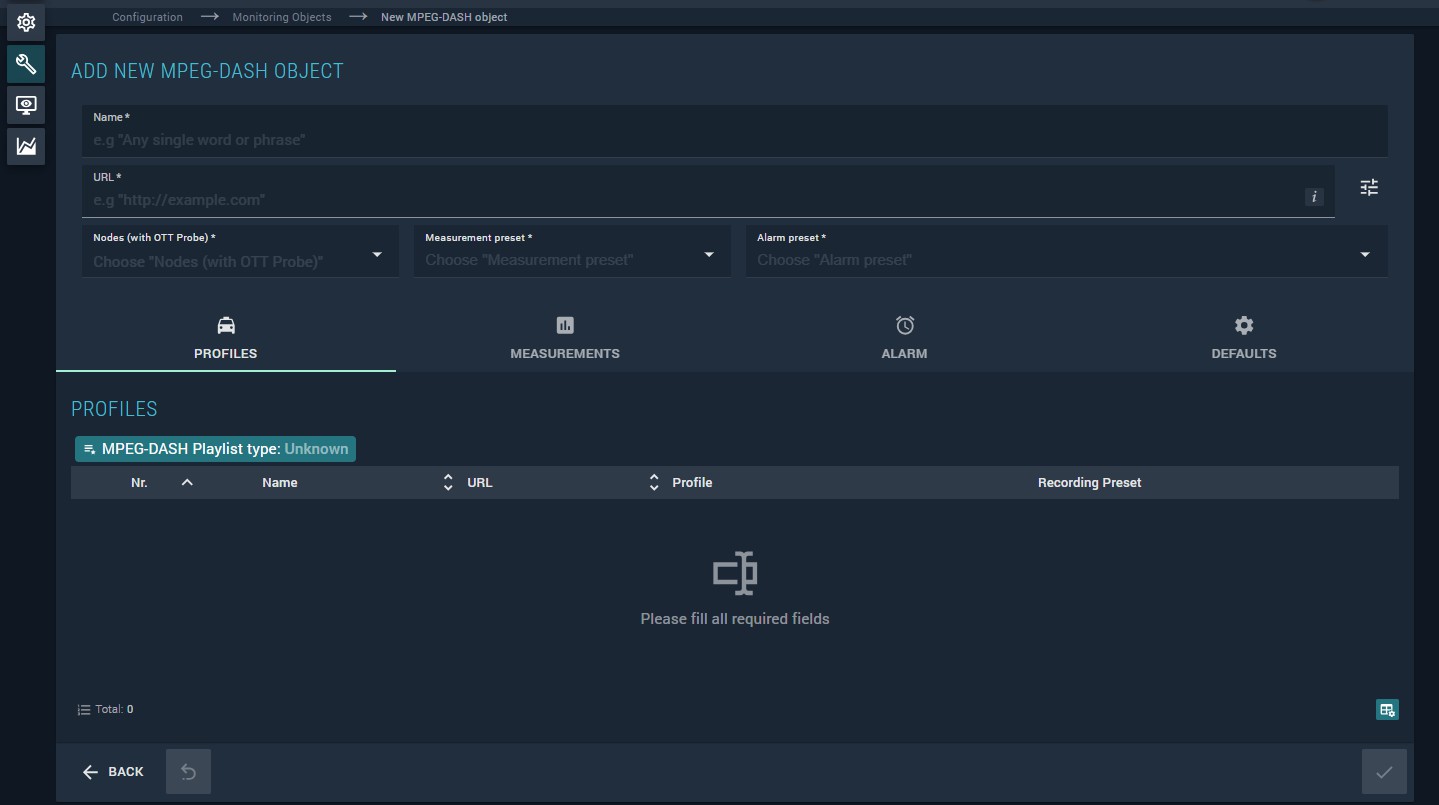

Figure 81. MPEG-DASH monitoring object configuration screen
Object Settings
| Parameter | Description |
|---|---|
| Name | User-defined name |
| URL | MPEG-DASH stream address. A checkmark icon  appears if the profile loads successfully. The link generator button  is located to the right |
| Node | Node running the monitoring service. Select from the list |
| Measurement preset | Select from the available presets (see Figure 82) |
| Alarm preset | Select from the available presets (see Figure 83) |

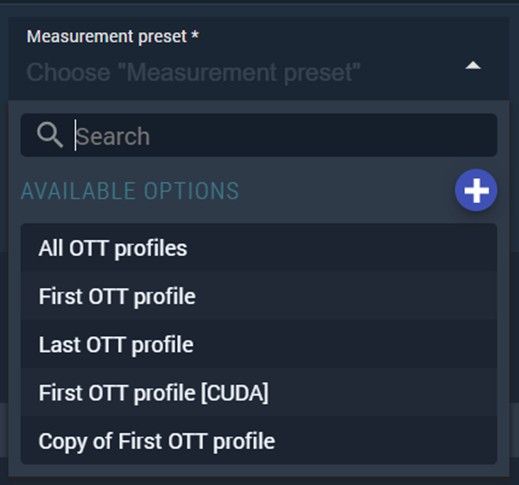

Figure 82. Measurement preset list for MPEG-DASH
Figure 83. Alarm preset list for MPEG-DASH
Preset Settings Tabs
The Profiles, Measurements, Alarms, and Defaults tabs function identically to those of the HLS object (see Section 5.1.3).
MPEG-DASH Transport Encrypted Variant
A variant of the MPEG-DASH object supports encrypted streams protected by a DRM
system. To configure it, click the New object button
and select
MPEG-DASH from the list. The configuration screen opens.
Figure 84. MPEG-DASH Transport Encrypted configuration screen
The encrypted object configuration section contains:
| Parameter | Description |
|---|---|
| URL | Address of the encrypted MPEG-DASH stream. A checkmark icon confirms successful profile loading; the link generator is located next to it |
| Measurement preset | OTT measurement preset of type OTT DRM — see Section 5.2.8.2 |
| Alarm preset | Alarm preset for this object — see Section 5.3.4 |
Link Generator for Encrypted Streams

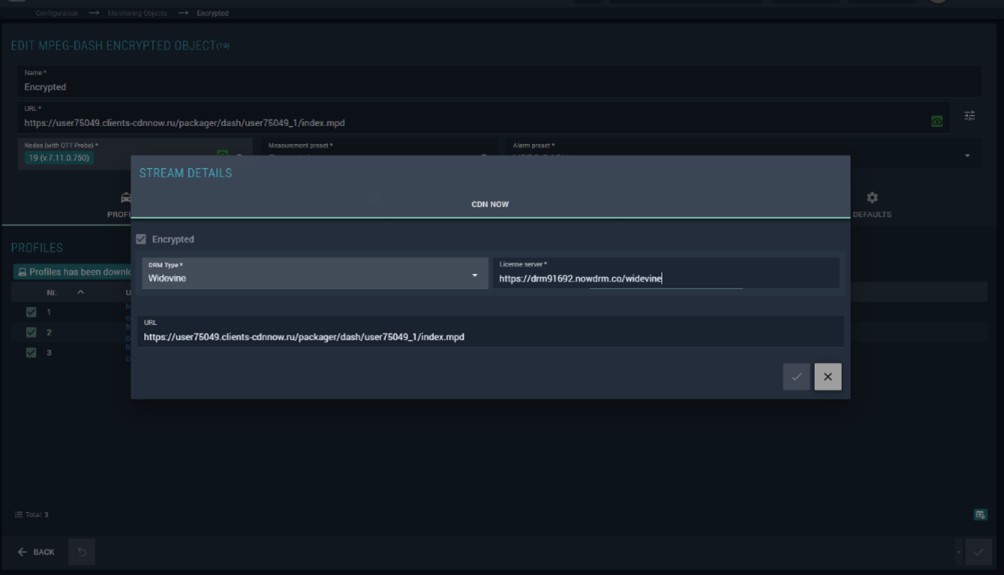

Figure 85. MPEG-DASH Transport Encrypted link generator screen
Fill in the following fields:
| Field | Description |
|---|---|
| DRM protection system provider name | Select the required provider |
| Encrypted | Must be enabled for encrypted streams |
| DRM Type | Content protection system — select Widevine |
| License server | URL of the licensing server for the encrypted stream |
| URL | Address of the encrypted MPEG-DASH stream; auto-filled if already entered on the configuration screen |
Note
When the Encrypted checkbox is activated, the object type changes to MPEG-DASH Transport Encrypted upon saving. Recording is not available for this object type.
The preset settings tabs for MPEG-DASH Transport Encrypted are identical to those for the standard MPEG-DASH object.
Configuration of the RTMP/RTSP Object
- The RTMP monitoring object monitors streaming video/audio compliant with the Real-Time Messaging Protocol (Adobe RTMP Specification).
- The RTSP monitoring object monitors streaming video/audio compliant with the Real-Time Streaming Protocol (RFC 2326).
Use the Monitoring objects screen and Monitoring object configuration screen (see Section 5.1.2) to create or edit objects.
The RTMP/RTSP configuration contains the same parameters as the HLS object (see Section 5.1.3), with the exception that there is no Profiles tab.
Configuration of the SCRIPT Object
The Script monitoring object is used to monitor objects whose data is received by MultiProbe through user-defined scripts. For more on scripts, see Section 4.4.
Use the Monitoring objects screen and Monitoring object configuration screen (see Section 5.1.2) to create or edit objects.

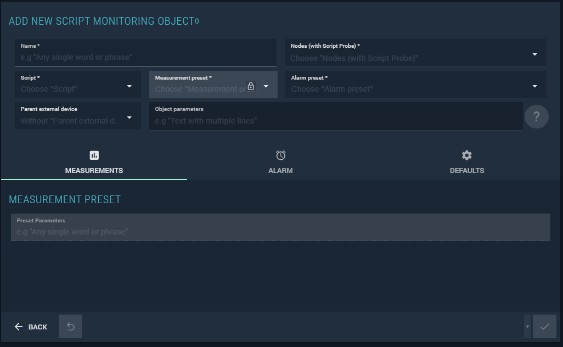

Figure 86. Script Monitoring Object configuration screen
Object Settings
| Parameter | Description |
|---|---|
| Name | User-defined name |
| Node | Node running the Script Probe service. Select from the list |
| Script | Script name. Must be pre-configured — see Section 4.4. Select from the list |
| Measurement preset | Select from the list — see Section 5.2 |
| Alarm preset | Select from the list — see Section 5.3 |
| Parent external device | Device from which the script receives data. Must be supported by MultiProbe. Select from the list |
| Object parameters | Parameters passed to the script. Content depends on the script's function — consult the script author for requirements |
Tip
Script parameters can be used, for example, to pass the IP address of the device from which the script retrieves data. The device's GUI can later be accessed from workspaces using the External WEB page widget (see Section 12.2.2).
Preset Settings Tabs
Measurements — displays the selected measurement preset and its parameters.
Click
to edit.
Alarms — displays the selected alarm preset and its parameters.
Click to edit.
Defaults — contains Tags for the monitoring object. See Section 4.5.4.
Configuration of the MPEG TS Object
The MPEG TS monitoring object monitors MPEG TS transport streams compliant with the ISO 13818–1 specification. Measurement, alarm, and recording presets can be assigned to both the entire stream and to individual services (TV programs) within it. A preset assigned to the entire stream also applies to each service and to PSI/SI.
Tip
If you only need to monitor a specific service within a transport stream, consider using the MPEG TS Service object instead — see Section 5.1.8.
Use the Monitoring objects screen and Monitoring object configuration screen (see Section 5.1.2) to create or edit objects.

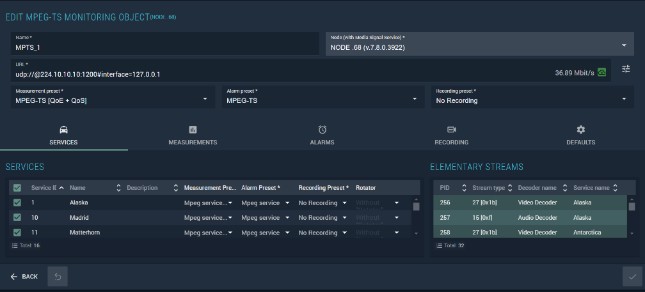

Figure 87. MPEG TS Monitoring Object configuration screen
Data Sources and Link Format
Data sources for MPEG TS are specified as URL links. Examples:
- Multicast stream:
udp://@239.100.100.100:12345#interface=10.0.40.68 - DVB-T2 tuner:

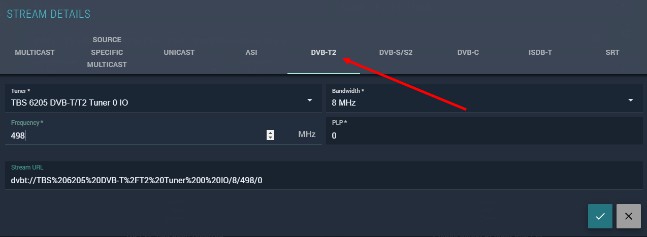

dvbt://TBS%206205%20DVB-T%2FT2%20Tuner%200%20IO/8/546/0
To simplify link creation, MultiProbe includes a link generator accessible from the URL field. The generator button is shown in Figure 88; an example of the generator window is shown in Figure 89.

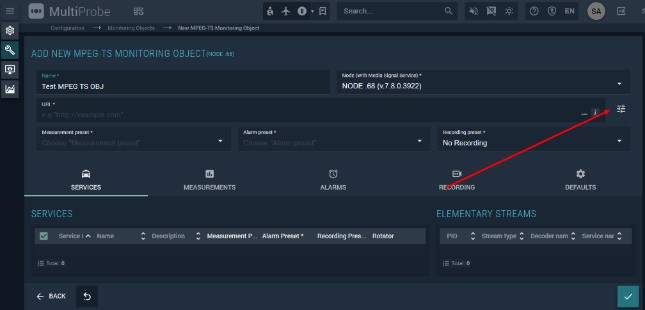

Figure 88. Link generator opening button
The link generator creates syntactically correct links for all MPEG TS source types and automatically inserts the result into the relevant field.

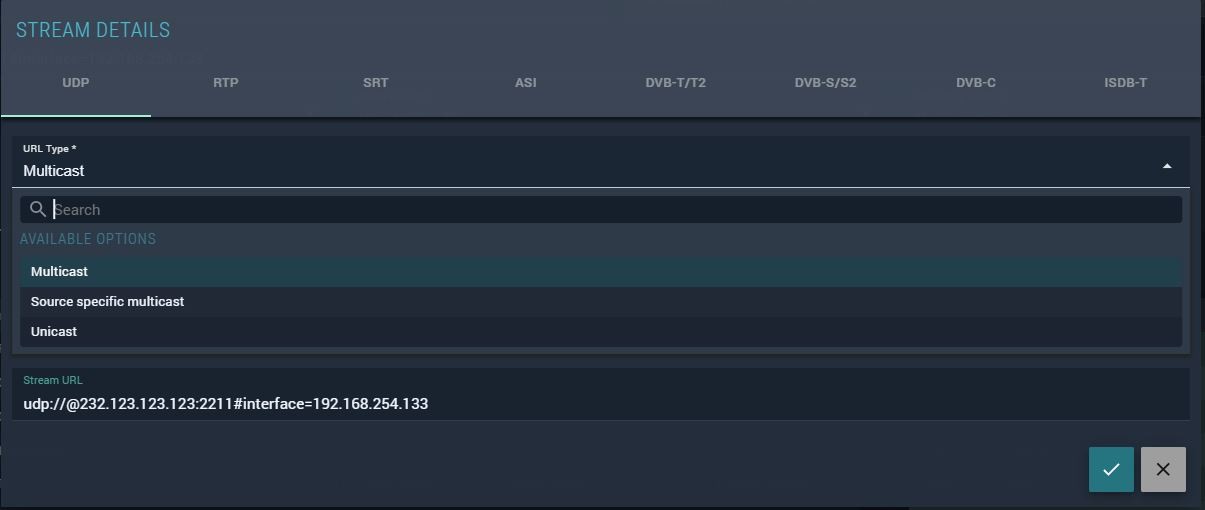

Figure 89. Link generator window — UDP tab
Link Generator — Source Types
The generator includes tabs for the following source types:
| Source | Description |
|---|---|
| UDP | Streaming signal via UDP protocol |
| RTP | Streaming signal via RTP protocol |
| SRT | SRT-standard stream developed by Haivision |
| ASI | MPEG TS from ASI interface card (e.g., Stream Labs MH4). Serial digital interface via coaxial cable — EN 50083–9 |
| DVB-T/T2 | Terrestrial digital TV (EN 300 744 / ETSI EN 302 755). Requires compatible tuner on the node |
| DVB-S/S2 | Satellite digital TV (ETSI EN 302 307). Requires compatible tuner |
| DVB-C/C2 | Cable digital TV (ETSI EN 302 769 / ETSI EN 300 429). Requires compatible tuner |
| ISDB-T | Terrestrial digital TV — ISDB-T standard. Requires compatible tuner |
For UDP and RTP, three stream type variations are available:
- Multicast — one-to-many streaming per RFC 1112; identified by a multicast group IP address and port. IGMP is typically used for group management.
- Source Specific Multicast (SSM) — similar to multicast but with source IP filtering per RFC 4607; only streams from the specified source are accepted.
- Unicast — one-to-one streaming, defined by recipient and source IP addresses.
For RTP objects, you can specify streams with or without redundancy (Primary/Secondary).
Note
Some signal types require compatible interface boards or receivers to be installed on the node.
Link Generator Field Reference
Table 25. Link generator tabs and fields
| Tab | Field | Purpose |
|---|---|---|
| UDP — Multicast | URL Type | Link type selector |
| Multicast | IP address of the multicast group | |
| Interface | IP address of the input interface (server NIC) | |
| Port | Port on which the stream is received | |
| Stream URL | Generated link | |
| UDP — Source Specific Multicast | URL Type | Link type selector |
| Multicast | Multicast group address | |
| Interface | IP address of the input interface | |
| Port | Multicast group port | |
| Source IP | Source IP — only streams from this source are accepted | |
| Stream URL | Generated link | |
| UDP — Unicast | URL Type | Link type selector |
| Unicast | Unicast IP address | |
| Port | Port on which the stream is received | |
| Interface | IP address of the input interface | |
| Stream URL | Generated link | |
| RTP — Multicast RTP | URL Type | Link type selector |
| Primary/Secondary | Whether the stream uses redundancy | |
| Multicast | IP address of the multicast group | |
| Interface | IP address of the input interface | |
| Port | Port on which the stream is received | |
| Stream URL | Generated link | |
| RTP — Source Specific Multicast RTP | URL Type | Link type selector |
| Primary/Secondary | Whether the stream uses redundancy | |
| Multicast | Multicast group IP address | |
| Interface | IP address of the input interface | |
| Port | Multicast group port | |
| Source IP | Source IP — only streams from this source are accepted | |
| Stream URL | Generated link | |
| RTP — Unicast RTP | URL Type | Link type selector |
| Primary/Secondary | Whether the stream uses redundancy | |
| Unicast | Unicast IP address | |
| Port | Port on which the stream is received | |
| Interface | IP address of the input interface | |
| Stream URL | Generated link | |
| ASI | Tuner | Interface card — select from installed cards on the node |
| Bitrate | Full bitrate of the digital stream (for cards without auto-detection) | |
| DVB-T/T2 | Tuner | DVB-T/T2 tuner card — select from installed cards |
| DVB-T/T2 Modulation | Broadcasting standard: DVB-T or DVB-T2 | |
| Bandwidth | Channel bandwidth — select per country standard | |
| Frequency | TV channel frequency per country frequency table | |
| PLP | Physical layer pipe number from which MPEG TS is extracted | |
| DVB-S/S2 | Tuner | DVB-S/S2 tuner card — select from installed cards |
| LNB | Converter operation: polarization and 22 kHz tone signal | |
| Symbol Rate | Transponder symbol rate in kBaud (kSymb/s) | |
| Frequency | Transponder frequency in MHz (3200–4800 or 10700–12750) | |
| Low oscillator frequency | Converter heterodyne frequency for C/Ku band | |
| DVB-S/S2 modulation | Modulation (constellation) type | |
| FEC | Forward error correction value | |
| DVB-C/C2 | Tuner | DVB-C/C2 tuner card — select from installed cards |
| Symbol rate | Symbol rate in the frequency channel | |
| Frequency | Channel frequency in MHz | |
| Constellation | Constellation type used in the channel | |
| ISDB-T | Tuner | ISDB-T tuner card — select from installed cards |
| Bandwidth | Channel bandwidth — select per country standard | |
| Frequency | TV channel frequency per country frequency table | |
| Sub Channel | Subchannel number containing the required MPEG TS | |
| Number of segments | Number of signal segments | |
| Polarity | Signal polarity | |
| SRT | Host name | SRT source hostname |
| Port | SRT source port | |
| Connection mode | Caller, Listener, or Rendezvous — see SRT specification | |
| Key length | Encryption key length (default: 128 bits) | |
| Password | Password for accessing the SRT source |
Object Settings
| Parameter | Description |
|---|---|
| Name | User-defined name |
| URL | MPEG TS stream address — use the link generator. A checkmark icon  appears with the full bitrate if PSI/SI is detected and read correctly |
| Node | Node running the Media Signal Service. Select from the list |
| Measurement preset | Select from the list — see Section 5.2 |
| Alarm preset | Select from the list — see Section 5.3 |
| Recording preset | Recording preset for the complete transport stream including all services and PSI/SI |
Preset Settings Tabs
Services — lists services per the PSI/SI obtained from the MPEG TS stream (Figure 90), along with elementary streams (Figure 91). Select a service to view its elementary streams.
Each service entry in the list includes:
| Column | Description |
|---|---|
| (checkbox) | Service selection for group operations |
| Service ID | Service number per PAT |
| Name | Service name per SDT |
| Measurement preset | Measurement preset for this service |
| Alarm preset | Alarm preset for this service |
| Recording preset | Recording preset for this service |

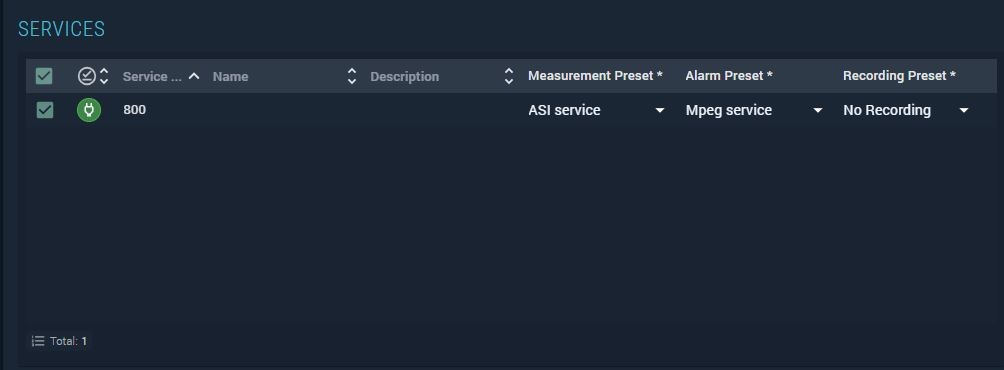

Figure 90. List of MPEG TS services
Each elementary stream entry shows:
| Column | Description |
|---|---|
| PID | Stream PID |
| Stream type | Stream type per ISO 13818–1 |
| Decoder name | Decoder type corresponding to the stream type |
| Service name | Name of the service this stream belongs to (per SDT) |

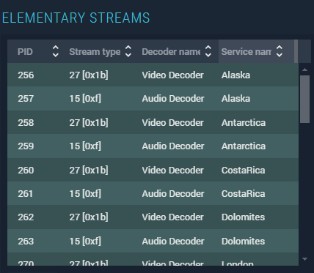

Figure 91. List of elementary streams
Measurements — displays the selected measurement preset.
Click
to edit.
Alarms — displays the selected alarm preset.
Click to edit.
Recording preset — displays the selected recording preset.
Click to edit.
Defaults — description, tags, and virtual service membership (see Section 5.5).
Configuration of the MPEG TS Service Object
Prerequisite
An MPEG TS monitoring object must be created before configuring an MPEG TS Service object — see Section 5.1.7.
The MPEG TS Service monitoring object monitors individual services within an MPEG TS transport stream (ISO 13818–1). Service composition and parameters are determined automatically from the PSI/SI.
Use the Monitoring objects screen and Monitoring object configuration screen (see Section 5.1.2) to create or edit objects.
Figure 92. MPEG TS Service object configuration screen
Object Settings
| Parameter | Description |
|---|---|
| Transport stream | The parent MPEG TS transport stream. An MPEG TS object must exist. Select from the list |
| Service No. | MPEG TS service number per PAT, with the SDT name shown. Select from the PSI/SI-analyzed list |
| Name | User-defined name; defaults to the SDT name |
| Measurement preset | Select from the list — see Section 5.2 |
| Alarm preset | Select from the list — see Section 5.3 |
| Recording preset | Recording preset for this service; service composition is determined from PSI/SI and shown in the Elementary streams list |
The service's elementary stream composition is displayed in the Elementary streams list on the Measurements tab (see Figure 91).
Configuration of the Single Signal Service Object
The Single signal service monitoring object monitors uncompressed signals such as SDI.
Use the Monitoring objects screen and Monitoring object configuration screen (see Section 5.1.2) to create or edit objects.

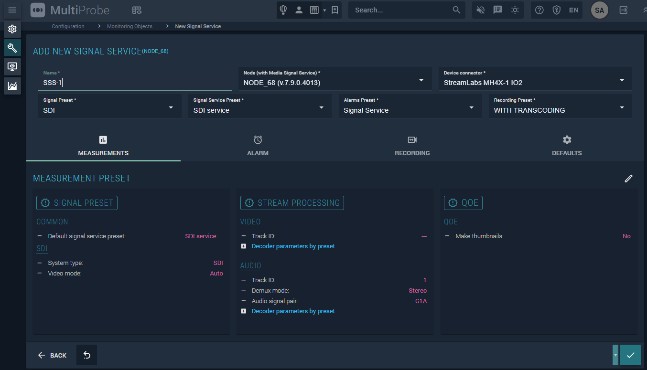

Figure 93. Single signal service configuration screen
Object Settings
| Parameter | Description |
|---|---|
| Name | User-defined service name |
| Node | Node with the interface card for signal reception, running the Media signal service. Select from the list |
| Device connector | Input of the interface card to which the signal is connected. Select from the list |
| Signal preset | Preset for the received signal — see Section 5.2.4 |
| Signal service preset | Signal service preset — see Section 5.2.5 |
| Alarm preset | Alarm preset — see Section 5.3 |
| Recording preset | Recording preset — see Section 5.4 |
Preset Settings Tabs
Inputs — after selecting a node and signal preset, lists all available inputs on the node for uncompressed signals matching the preset. For each selected input, configure:
| Parameter | Description |
|---|---|
| Name | Auto-generated name within the Multiple signal service |
| Signal service preset | Select the preset compatible with the actual signal type |
| Recording preset | Recording preset for this input |
| Decoder | Select which decoders to use. Ensure compatibility with the signal type — see Section 5.2.2 |
Measurement preset — select from the list; click
to edit.
Alarm preset — select from the list; click to edit.
Recording preset — select the preset covering all services; click to edit.
Defaults — description and tags.
Configuration of the Multiple Signal Service Object
The Multiple signal service monitoring object creates several Single signal service objects simultaneously for all inputs of a single interface board. For details on the Single signal service object, see Section 5.1.9.
Use the Monitoring objects screen and Monitoring object configuration screen (see Section 5.1.2) to create or edit objects.
Figure 94. Multiple signal service configuration screen
Object Settings
| Parameter | Description |
|---|---|
| Node | Node with the interface board for signal reception, running the Media signal service. Select from the list |
| Signal preset | Preset for the received signals — see Section 5.2 |
| Alarm preset | Alarm preset — see Section 5.3 |
Preset Settings Tabs
Inputs — after selecting the node and signal preset, lists all available inputs matching the preset. For each input to be monitored, configure:
| Parameter | Description |
|---|---|
| Name | Auto-generated name for the created Single signal service object |
| Signal service preset | Select a preset compatible with the actual signal type |
| Recording preset | Recording preset for this input |
| Decoder | Available decoders (for reference) — see Section 5.2.2 |
Measurement preset — click to edit.
Alarm preset — click to edit.
Recording preset — click to edit.
Configuration of the SMPTE 2022–6 Object
The SMPTE 2022-6 monitoring object monitors uncompressed SDI signals encapsulated in IP per the SMPTE ST 2022-6 specification.
Use the Monitoring objects screen and Monitoring object configuration screen (see Section 5.1.2) to create or edit objects.

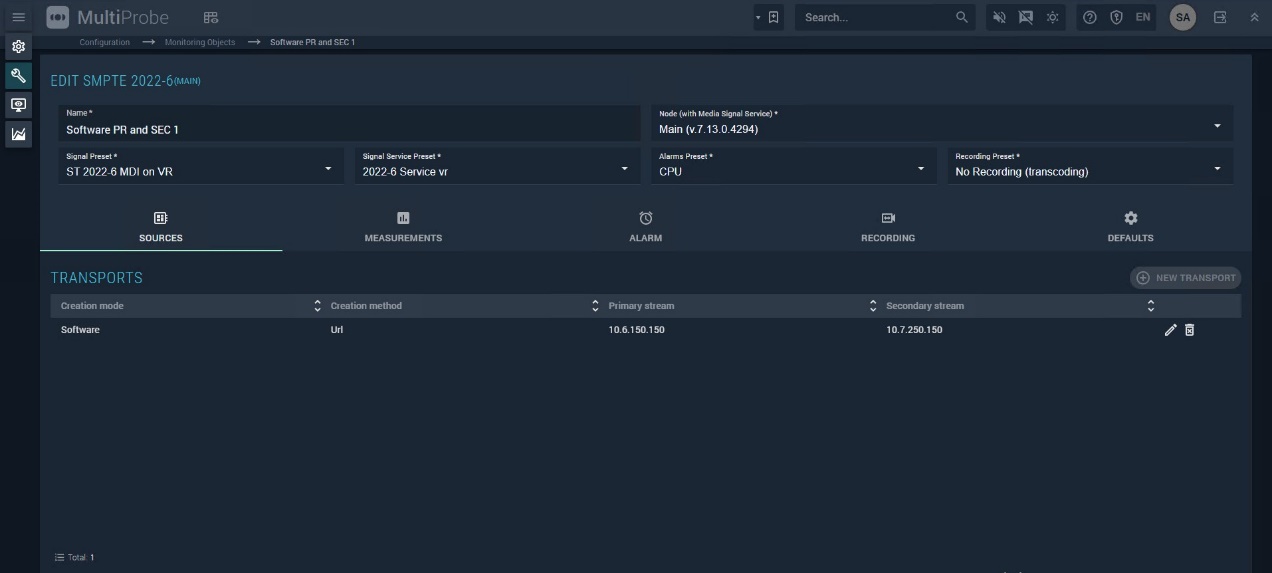

Figure 95. SMPTE 2022–6 monitoring object configuration screen
Object Settings
| Parameter | Description |
|---|---|
| Name | User-defined service name |
| Node | Node running the Media signal service. Select from the list |
| Signal preset | Signal preset — see Section 5.2.4 |
| Signal service preset | Signal service preset — see Section 5.2.5 |
| Alarm preset | Alarm preset — see Section 5.3 |
| Recording preset | Recording preset — see Section 5.4 |
Preset Settings Tabs
Sources — lists multicast streams containing signal components. To add a source, click NEW TRANSPORT. This opens the source addition window (Figure 96).

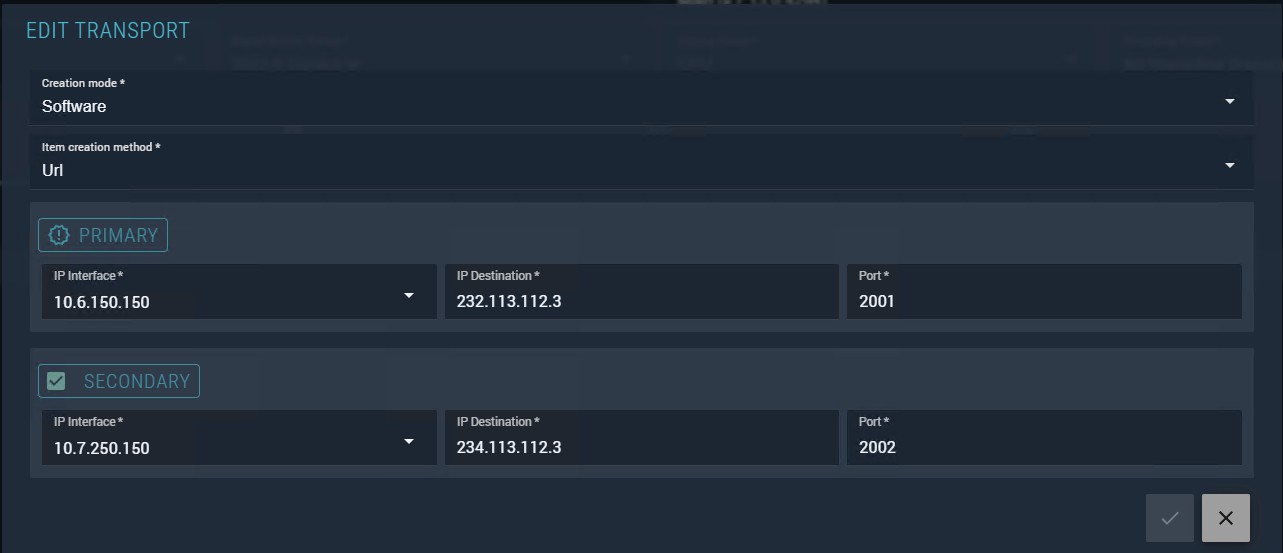

Figure 96. Window for adding SMPTE 2022-06 signal source
The source list shows:
| Column | Description |
|---|---|
| Creation mode | Software or Hardware — selected when creating the source |
| Item Creation method | Method for specifying source data — selected when creating the source |
| Primary stream | Node IP interface receiving the primary stream |
| Secondary stream | Node IP interface receiving the redundant stream; shown only when SECONDARY is enabled |
Source Addition Parameters:
| Parameter | Description |
|---|---|
| Creation mode | Software or Hardware |
| Item creation method | URL — specify interface IP and SDP URL; NMOS — retrieve parameters from an NMOS server |
The window contains two tabs — PRIMARY and SECONDARY — for the primary and redundant streams respectively.
For Item creation method = URL (both streams):
| Parameter | Description |
|---|---|
| IP interface | Node network interface IP where the SDP will be received |
| IP Destination | Multicast group IP for the stream |
| Port | Multicast group port |
For Item creation method = NMOS (both streams):
| Parameter | Description |
|---|---|
| IP interface | Node network interface IP for NMOS messages |
| IP Destination | Multicast group IP for the stream |
| Port | Multicast group port |
Measurement, Alarm, Recording — display respective preset information;
click
to edit each.
Defaults — description and tags.
Configuration of the SMPTE 2110 Object
The SMPTE 2110 monitoring object monitors components of uncompressed SDI signals encapsulated in IP per the SMPTE ST 2110 specification, with redundancy support. The following components are supported:
- Video — SMPTE ST 2110–20
- Audio — SMPTE ST 2110–30
Use the Monitoring objects screen and Monitoring object configuration screen (see Section 5.1.2) to create or edit objects.

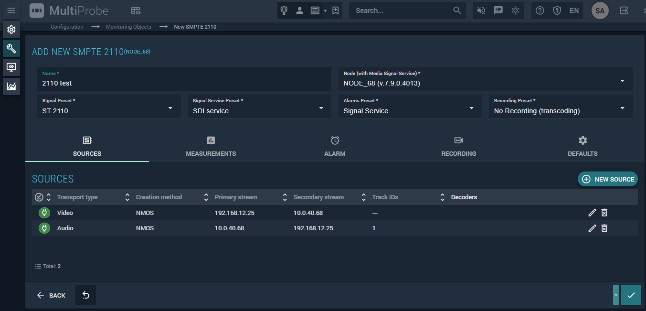

Figure 97. SMPTE 2110 monitoring object configuration window
Object Settings
| Parameter | Description |
|---|---|
| Name | User-defined service name |
| Node | Node running the Media signal service. Select from the list |
| Signal preset | Signal preset — see Section 5.2.4 |
| Signal service preset | Signal service preset — see Section 5.2.5 |
| Alarm preset | Alarm preset — see Section 5.3 |
| Recording preset | Recording preset — see Section 5.4 |
Preset Settings Tabs
Sources — lists multicast streams containing signal components. Click New Source to open the source addition window (Figure 98).
The Sources tab columns:
| Column | Description |
|---|---|
| Transport type | Video (ST 2110-20), audio (ST 2110-30), or ancillary data (ST 2110-40) |
| Creation method | Method used to specify source data |
| Primary stream | Node IP interface for the primary stream |
| Secondary stream | Node IP interface for the redundant stream; shown when Enable secondary stream is selected |
| Track ID | Ordinal number of the multicast stream as defined by the Signal service preset; used to identify streams of the same component type across multiple multicast groups |
| Decoders | List of decoders defined in the Signal service preset |

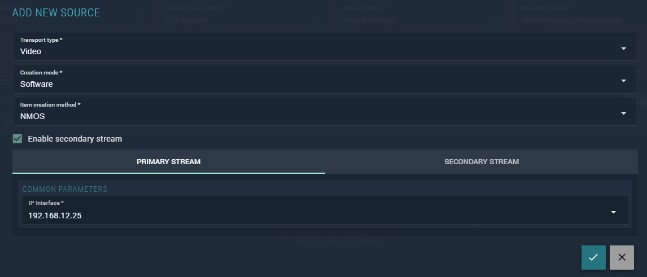

Figure 98. SMPTE 2110 signal source adding window
Source Addition Parameters:
| Parameter | Description |
|---|---|
| Transport type | Video (ST 2110-20), audio (ST 2110-30), or ancillary data (ST 2110-40). Only types configured in the selected Signal service preset are shown. Cannot be changed after creation |
| Creation mode | Software only (current version) |
| Item creation method | URL / Parameters / File / NMOS |
| Enable secondary stream | Enable to configure a redundant second stream |
The Primary stream and Secondary stream tabs content depends on the Item creation method:
- URL — specify IP interface (node NIC for SDP) and SDP URL.
- Parameters — manually enter parameters from the SDP protocol (see RFC 4566 and RFC 7273).
- File — paste the contents of a file containing the parameter descriptions.
- NMOS — specify the IP interface for receiving NMOS messages.
Measurement preset, Alarm preset, Recording preset — display respective
preset information; click
to edit.
Defaults — description and tags.
Configuration of the NDI Object

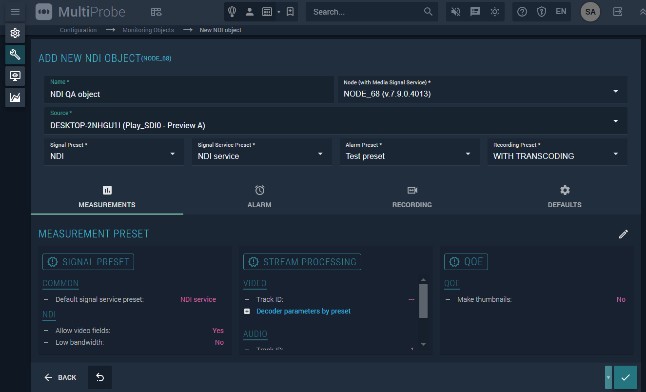

The NDI monitoring object monitors uncompressed signals transmitted over IP networks using NDI technology developed by NewTek.
Use the Monitoring objects screen and Monitoring object configuration screen (see Section 5.1.2) to create or edit objects.
Figure 99. NDI monitoring object configuration screen
Object Settings
| Parameter | Description |
|---|---|
| Name | User-defined service name |
| Node | Node running the Media signal service. Select from the list |
| Source | NDI signal source — detected automatically on the network. Select from the list |
| Signal preset | Signal preset — see Section 5.2.4 |
| Signal service preset | Signal service preset — see Section 5.2.5 |
| Alarm preset | Alarm preset — see Section 5.3 |
| Recording preset | Recording preset — see Section 5.4 |
Preset Settings Tabs
Measurement preset, Alarm preset, Recording preset — display respective
preset information; click to edit.
Defaults — description and tags.
Configuration of the T2-MI Object
The T2-MI monitoring object monitors terrestrial DVB-T2 digital television signals received from an interface board installed on the node.
Use the Monitoring objects screen and Monitoring object configuration screen (see Section 5.1.2) to create or edit objects.

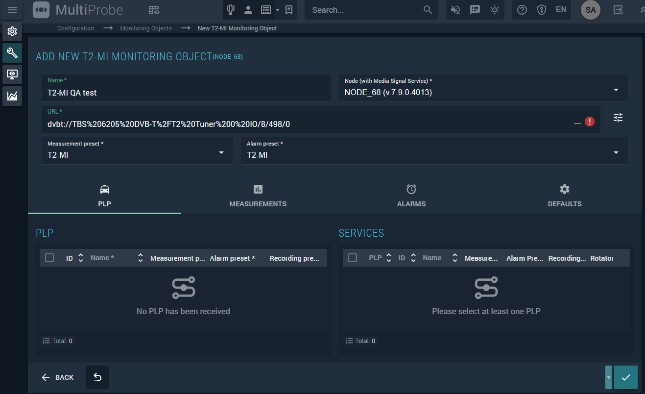

Figure 100. DVB-T2 monitoring object configuration screen
Object Settings
| Parameter | Description |
|---|---|
| Name | User-defined service name |
| Node | Node running the Media signal service. Select from the list |
| URL | Link to the T2-MI source, created using the T2-MI source setup window. Click  to open the window (see Figure 101). Source setup is described in Section 5.1.7 (link generator) |
| Signal preset | Signal preset — see Section 5.2.4 |
| Signal service preset | Signal service preset — see Section 5.2.5 |
| Alarm preset | Alarm preset — see Section 5.3 |
| Recording preset | Recording preset — see Section 5.4 |
Figure 101. DVB-T2 source configuration window
Preset Settings Tabs
PLP — shows the list of PLPs on the left and the list of services on the right. Select a PLP to view its services.
Measurement preset — click to edit.
Alarm preset — click to edit.
Defaults — description and tags.
