Web Interface
MultiTuner is fully configured and monitored through its built-in web interface. No additional software is required — any modern browser on a computer connected to the same network is sufficient.
Main Monitoring View
The main view displays all configured channels as a grid of tiles. Each tile shows the key parameters for that channel at a glance.

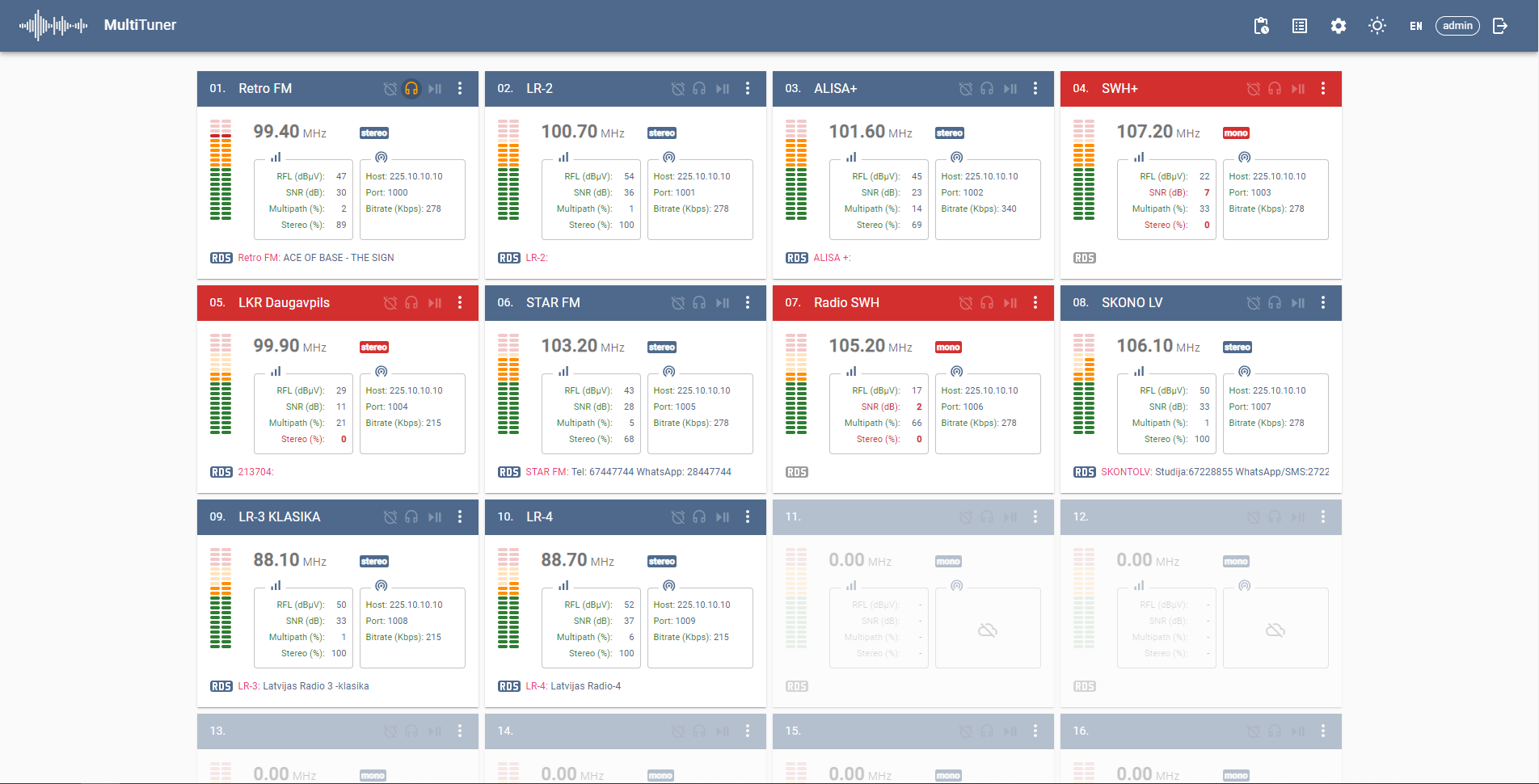

Main monitoring view (light mode)

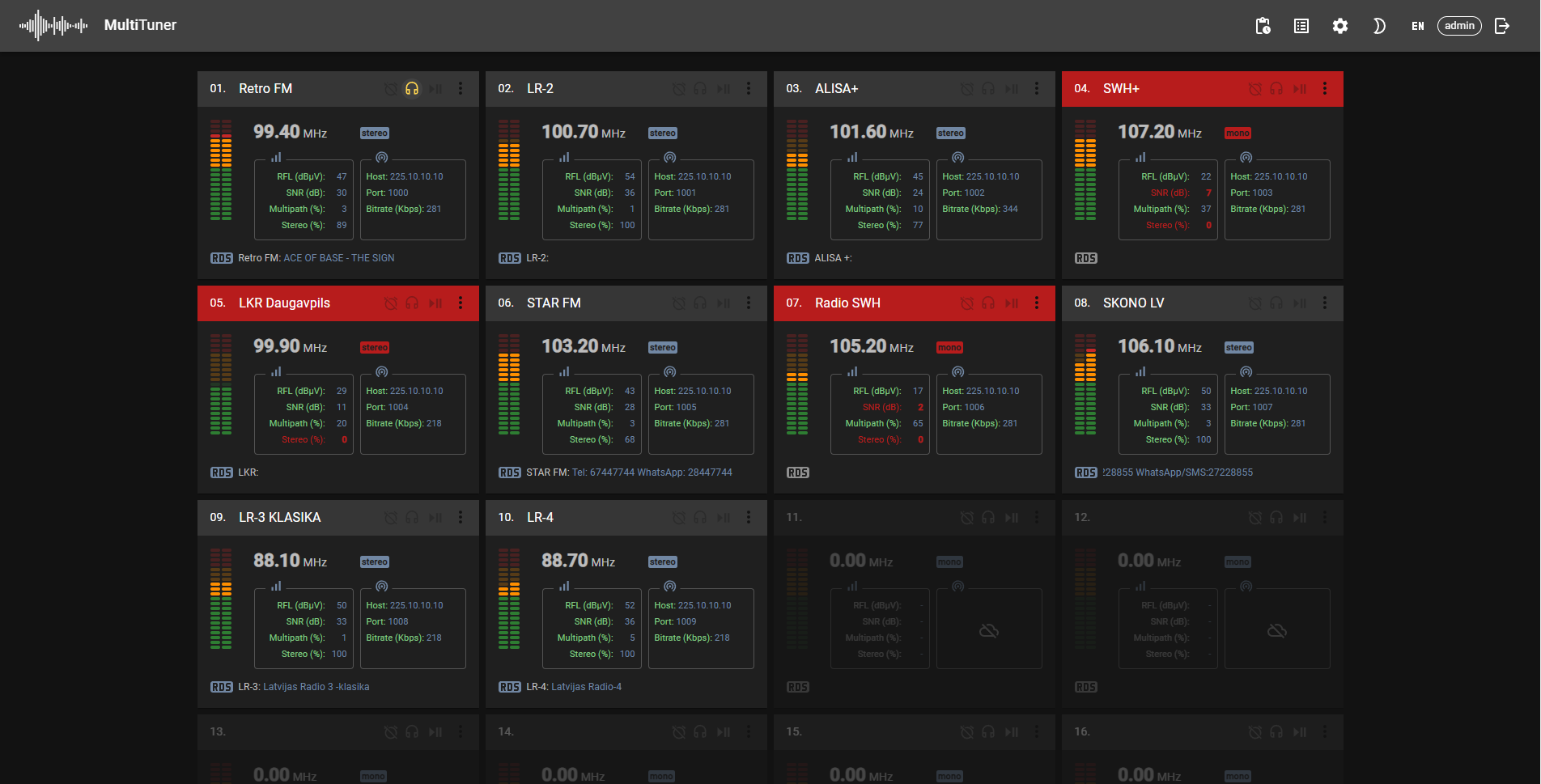

Main monitoring view (dark mode)
A light and dark theme are available and can be toggled from the top navigation bar.

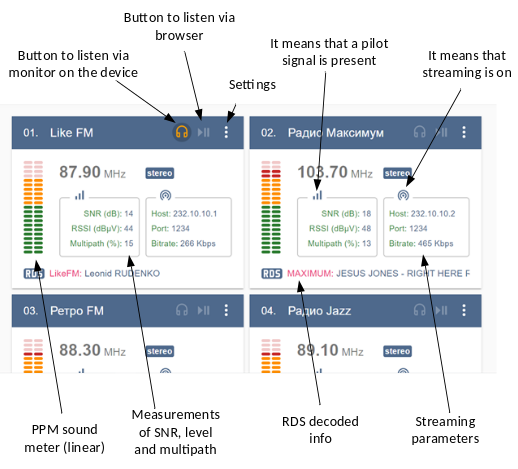

Channel Tile
Each channel tile provides a real-time summary of the monitored station.
| Element | Description |
|---|---|
| Frequency | Tuned FM frequency in MHz |
| Station name | Configured label for this channel slot |
| RF level | Received signal strength |
| SNR | Signal-to-noise ratio in dB |
| Interference | Detected interference as a percentage (0–100%) |
| Pilot signal | Stereo pilot presence indicator |
| RDS text | Scrolling RDS RadioText broadcast by the station |
| Audio level | Real-time left/right audio level meters |
| Streaming status | Indicates whether IP streaming is active for this channel |
| Monitor | Routes this channel's audio to the front-panel headphone output |
Channels that breach a configured alarm threshold are highlighted directly on the tile, making it easy to spot issues at a glance without navigating away from the main view.
Sections
- Channel Configuration — tuning channels, naming slots, enabling monitoring
- IP Streaming — setting up UDP multicast or unicast transport streams per channel
- Alerts and Thresholds — configuring alarm levels for signal parameters
