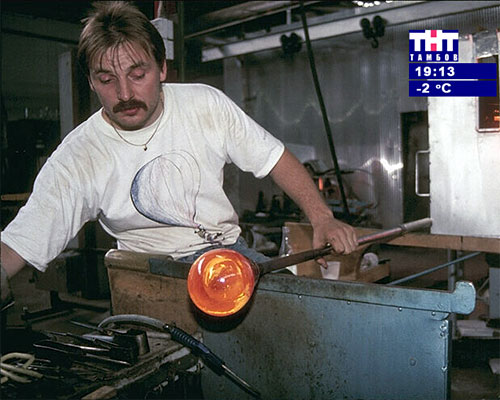

Displaying atmospheric temperature data on air

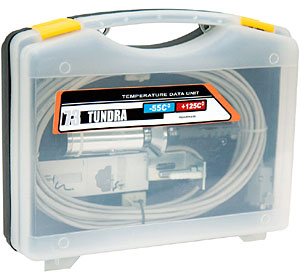

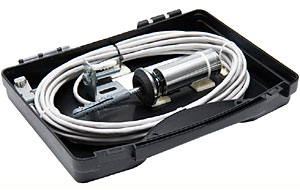

Alpha Pro 2.0, TELE 2.2 and TELE Info software functions can be extended by applying TUNDRA temperature meter. The meter is supplied with a long cable that allows to install it outside, in a place inaccessible to direct sunlight. The measurements are transferred to a computer via RS-232 interface.

The device does not require additional installation of drivers under Windows XP. You simply need to specify the number of the COM-port to which the meter is connected.

The software allows to adjust the appearance, position on the screen, font style, background and, if necessary, the interchange of temperature and time parameters. TELE 2.2 and TELE 2.2 Info broadcast automation systems allow to automate and time the output of temperature meter readings.

TUNDRA temperature meter specifications:

• temperature measurement range: -55 - +125 °Ñ;
• measurement error: 0.5 °Ñ;
• connection through COM port;
• length of a connecting cable: default - 10 m, on order - up to 150 m;
• two modes of mounting on a wall;
• dampproof case;
• 12 months warranty.
