Composite capture/playback card with Analog video/audio capture and playback card (PCI-Express).
This card can be used as a basis for home and studio video editing. Creating multichannel studio recording and slow motion replay systems. Monitoring and TV broadcast recording systems (loggers).
Multichannel visual TV broadcast monitoring systems (multiviewers), Multi-camera virtual studios. High quality video and audio capture and playback. High quality video decoding with 4H adaptive combine filter. 16x oversampling video encoding. VBI capture and playback.
- 4 CVBS connector for Video capture
- Hardware scaling the input HD/SD-HDMI-CVBS video
- Manual and software controllable standard switching for each input
- Supports NTSC(M/4.43) / PAL(B/D/G/H/I/K/L/M/N/60)/SECAM
- Supports of SD-standards 625/25 PAL/SECAM,
- 525/29.97 NTSC, 525/23.98 NTSC
- 2 channels of analog stereo audio capture. 1 channel is
- balanced (XLR) and the second linear (RCA)
- 24 bit, 48KHz analog audio capture
- Analog Video Output CVBS, NTSC(M/4.43) / PAL(B/D/G/H/I/K/L/M/N/60)
- 2 outputs with an internal expander.
- 24 bit, 48KHz analog audio playback
- 2 channels of analog stereo audio playback. 1 channel is balanced (XLR)
- and the second linear (RCA)
- PCI interface - PCI Express x4
- Firmware Update via PCI Express
- 2R1T - HDMI & Composite capture/playback card (2 HDMI inputs, 1 HDMI output, 4 CVBS inputs, 1 CVBS output)

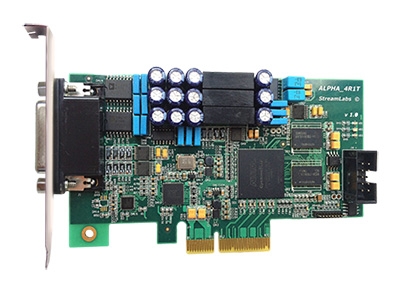

- 4R1T - Composite capture/playback card (4 CVBS inputs / 2 CVBS outputs)
