oGate
A hardware gateway designed for seamless, low-latency signal processing
JPEG-XS SMPTE 2110 SMPTE ST 2022-6/7 Changeover 12G-SDI h.264/h.265
Immerse yourself in the world of seamless and dependable video and audio content delivery with oGate, a revolutionary hardware solution meticulously crafted for minimal latency. oGate represents the pinnacle of swift signal transmission and conversion, characterized by unmatched flexibility and adaptability.
Supporting an array of protocols, including the industry standards 2110 and 2022-6, and seamlessly integrating with SDI interfaces, oGate effortlessly caters to diverse signal sources, transforming them into desired formats with ease.
Harnessing the cutting-edge prowess of codecs like h.264, h.265, and the exclusive JPEG XS implementation, oGate excels in compressing signals while preserving quality, ensuring swift and efficient data transmission. Entrust oGate to elevate your content delivery journey with unparalleled speed, reliability, and precision.
Features
- Supports a range of IP protocols, including AES3-IP ST2110, SDI-IP 2110, MAD-IP 2110, ASI-IP ST2022, and SDI-IP ST2022-6, ensuring compatibility with diverse signal sources.
- Ensures reliable stream redundancy through features such as automatic changeover, ST2022-7, and FEC ST2022-1/5, guaranteeing uninterrupted data transmission.
- Offers comprehensive input stream monitoring, quality of service/quality of experience (QoS/QoE) checks, PTP time synchronization, and IP integrity verification.
- Facilitates seamless management via REST API, SNMP, HTML5, WEB Server, and NMOS protocols, alongside support for collecting alarm events, software updates, and user authentication.
- Incorporates support for the JPEG XS codec, enabling signal compression without compromising quality, thereby ensuring efficient data transmission with minimal delay.
- Supports a variety of signal formats, including UHD, HDR, HD/SD, delivering superior image and sound quality across different resolutions.
Solution Highlights
Stability Under Heavy Loads
oGate guarantees stable data transmission even under heavy load conditions, leveraging fault tolerance mechanisms to maintain performance integrity. With signal processing speeds reaching up to 61 Gbps per unit, it ensures high performance and optimal resource utilization.
Tailored Solutions for Every Scenario
oGate offers adaptable signal formats and customizable compression parameters, facilitating swift adjustments to evolving media delivery requirements. Its versatility empowers broadcasters and media organizations with flexibility, eliminating the need for major hardware or software overhauls.
Effortless Integration
The solution seamlessly integrates with existing networks and systems, supporting various management and monitoring protocols such as NMOS, REST API, and SNMP. This ensures compatibility and ease of deployment, streamlining integration processes.
Scalability
oGate' scalability enables it to scale according to user requirements, offering a cost-effective and future-proof solution through licensing. This empowers organizations to adapt to evolving media consumption patterns and content needs without necessitating full system replacements.
Application areas

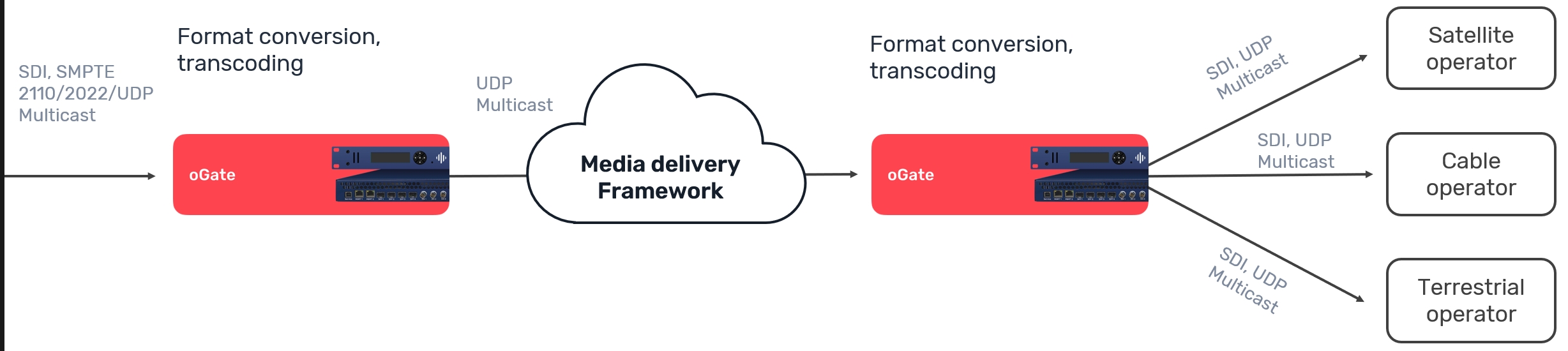

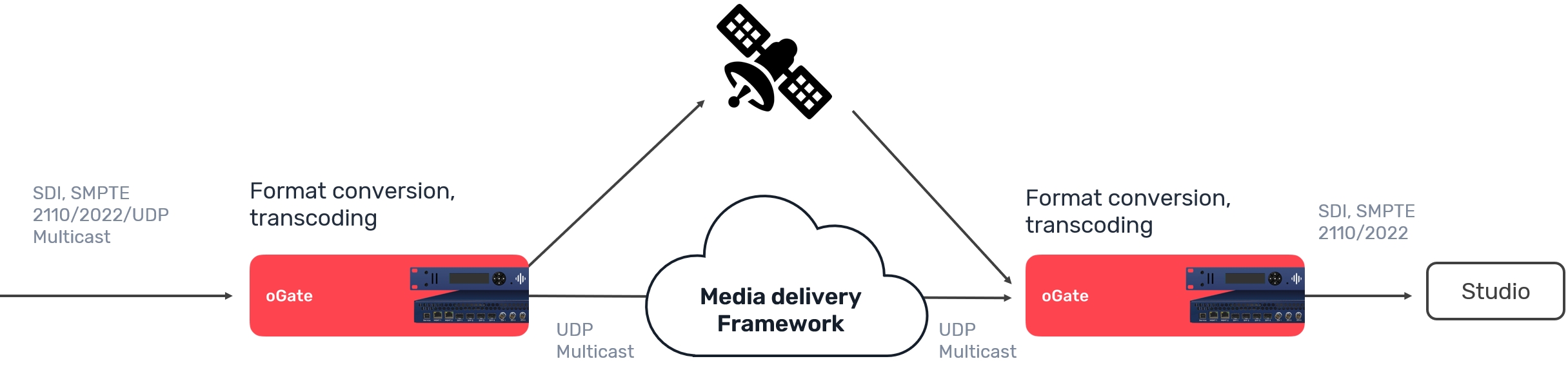

Satellite, cable, and terrestrial broadcasting hubs
Mobile television stations

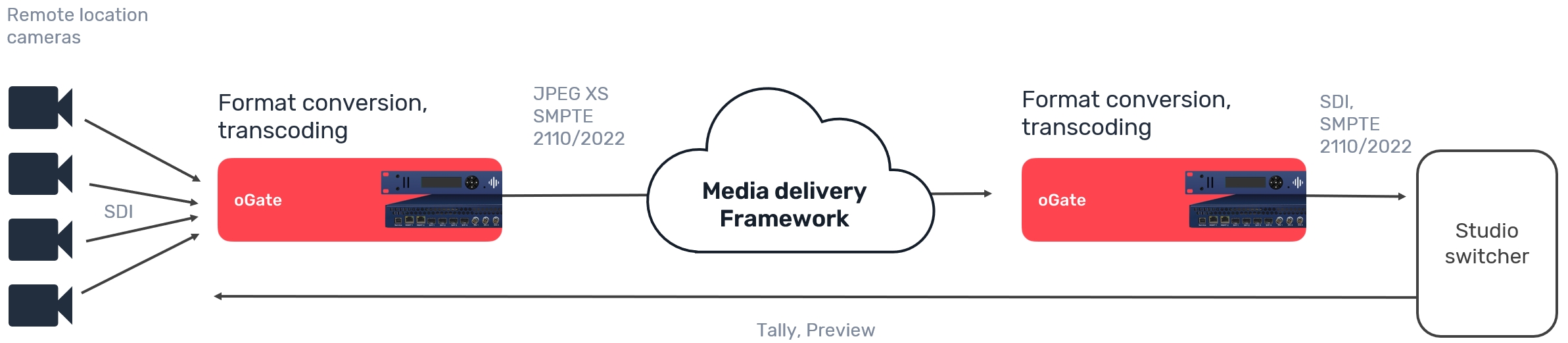

Remote program production

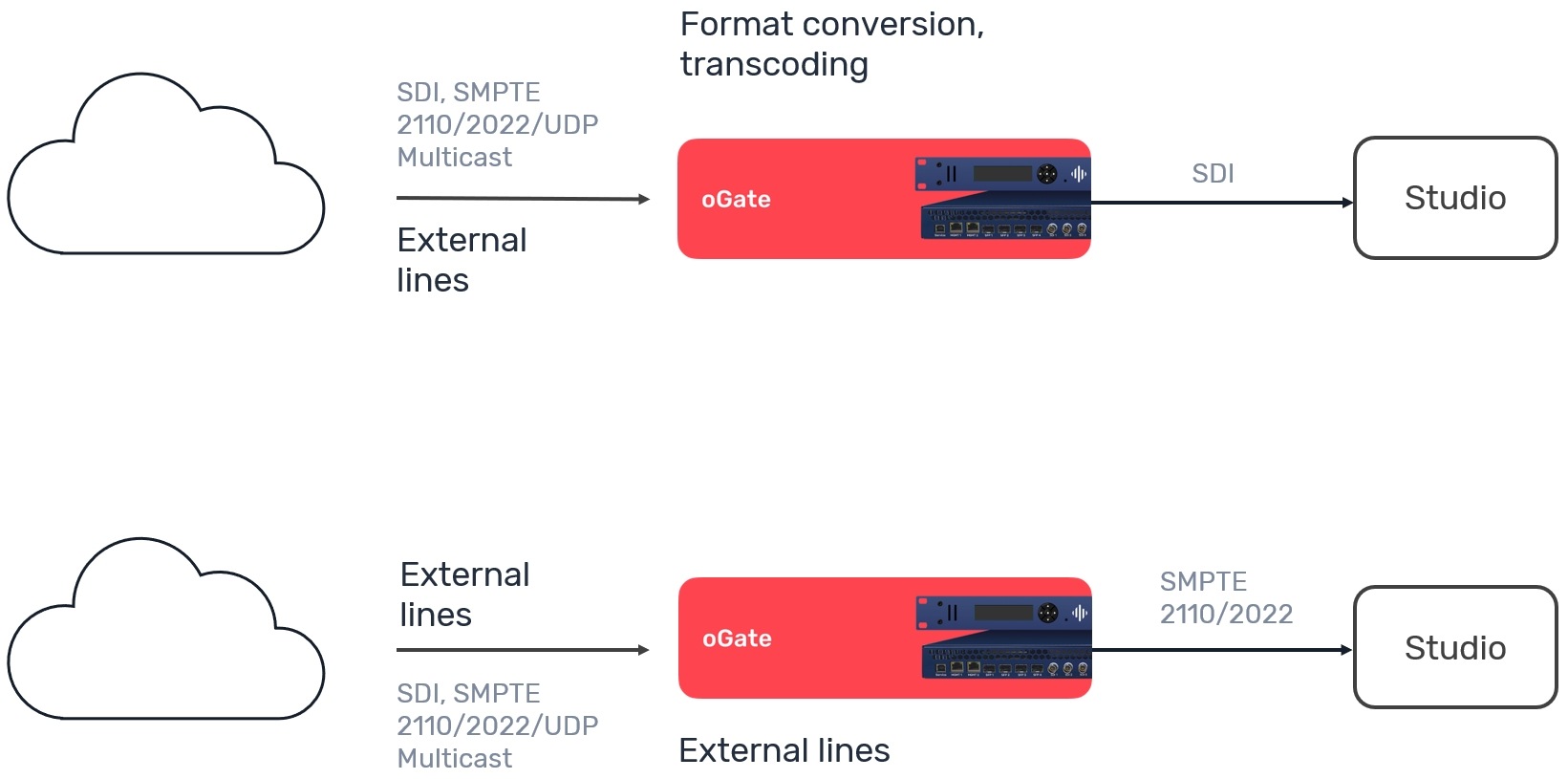

Studio environments based on SDI & SMPTE 2110/2022-6

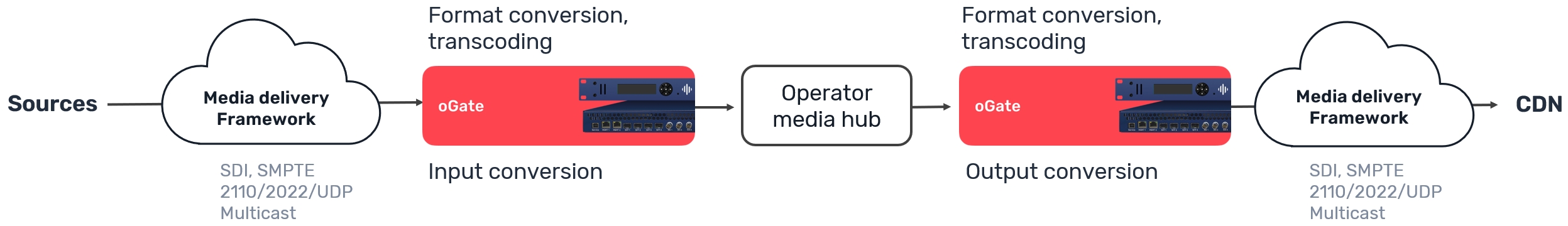

Media hubs for content delivery and distribution
Technical specifications
IP Adaptation
- AES3-IP ST2110
- SDI-IP 2110
- ASI-IP ST2022
- SDI-IP ST2022-6
Supported Formats
- UHD
- HDR
- HD/SD
Monitoring
- Input Monitoring
- QoS/QoE Checking
- PTP Time Sync.
- IP Integrity Check
Stream Redundancy
- Automatic Changeover
- ST2022-7
- FEC ST2022-1/5
Device Management
- REST API
- SNMP
- NMOS
- Alarm Event Collection
Redundancy and Fault Tolerance
- SMPTE 2022-7 Seamless Conn. for SMPTE 2022-6
- SMPTE 2022-7 Seamless Conn. for SMPTE 2110
- SMPTE 2022-7 Seamless Conn. for AES67
- SMPTE 2022-7 Seamless Conn. for TSoIP

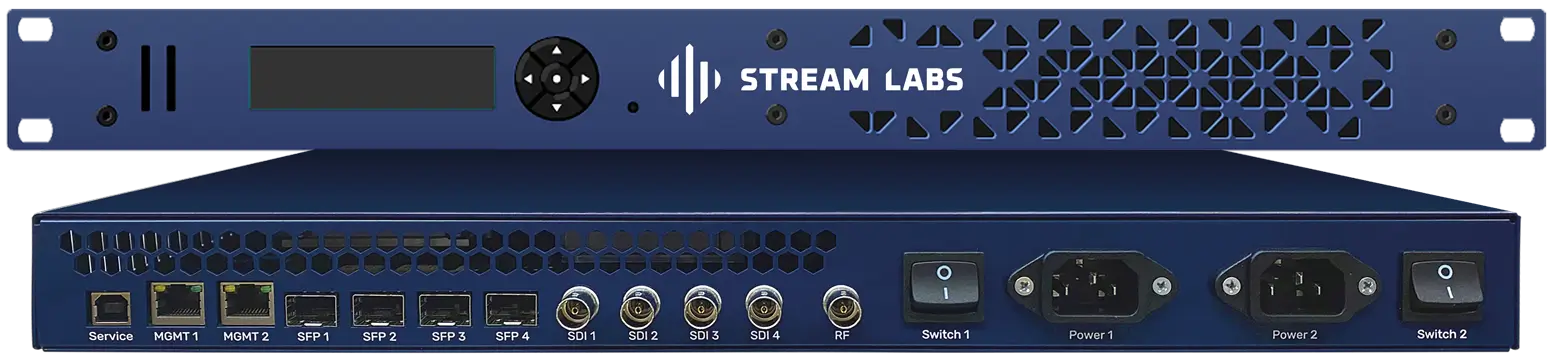

Ethernet Interfaces
- Data/Control 4x SFP 10 Gb/s
SDI Interfaces
- 4x 3G SDI/ASI
- 1x 12G SDI*
*When using this port, the other 3G SDI ports are unavailable.
