MS Mosaic to IP TS Encoder

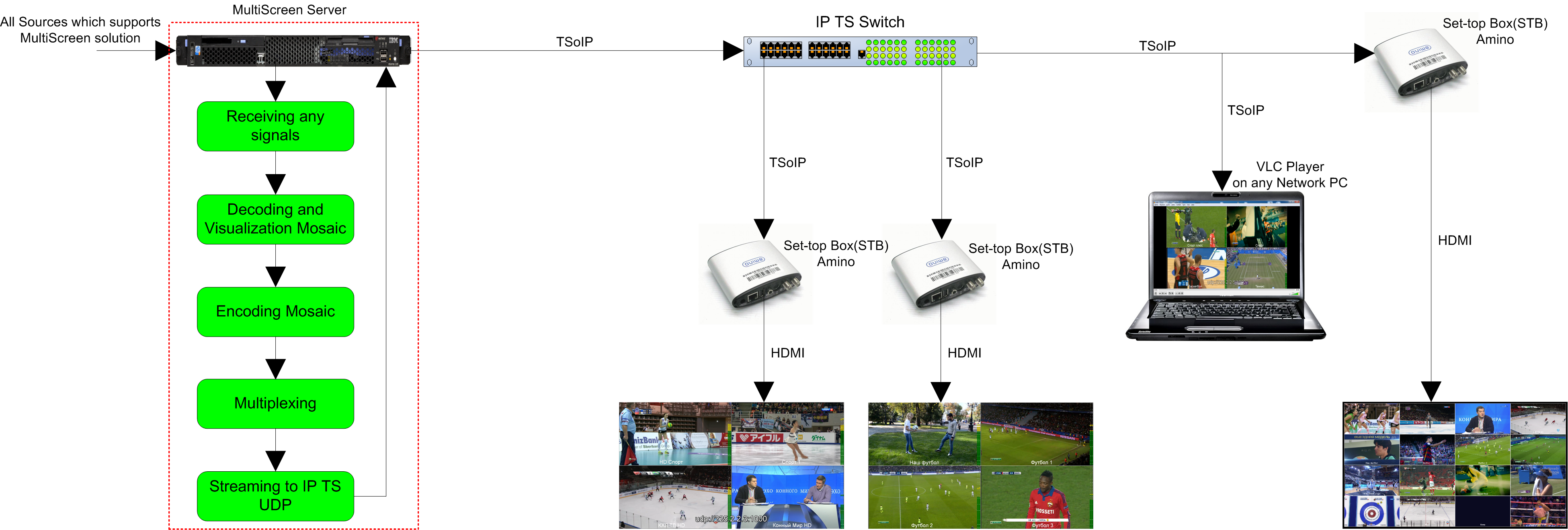

MultiScreen is capable of encoding of incoming video from various sources to one (or a few) Mosaics in IP TS.

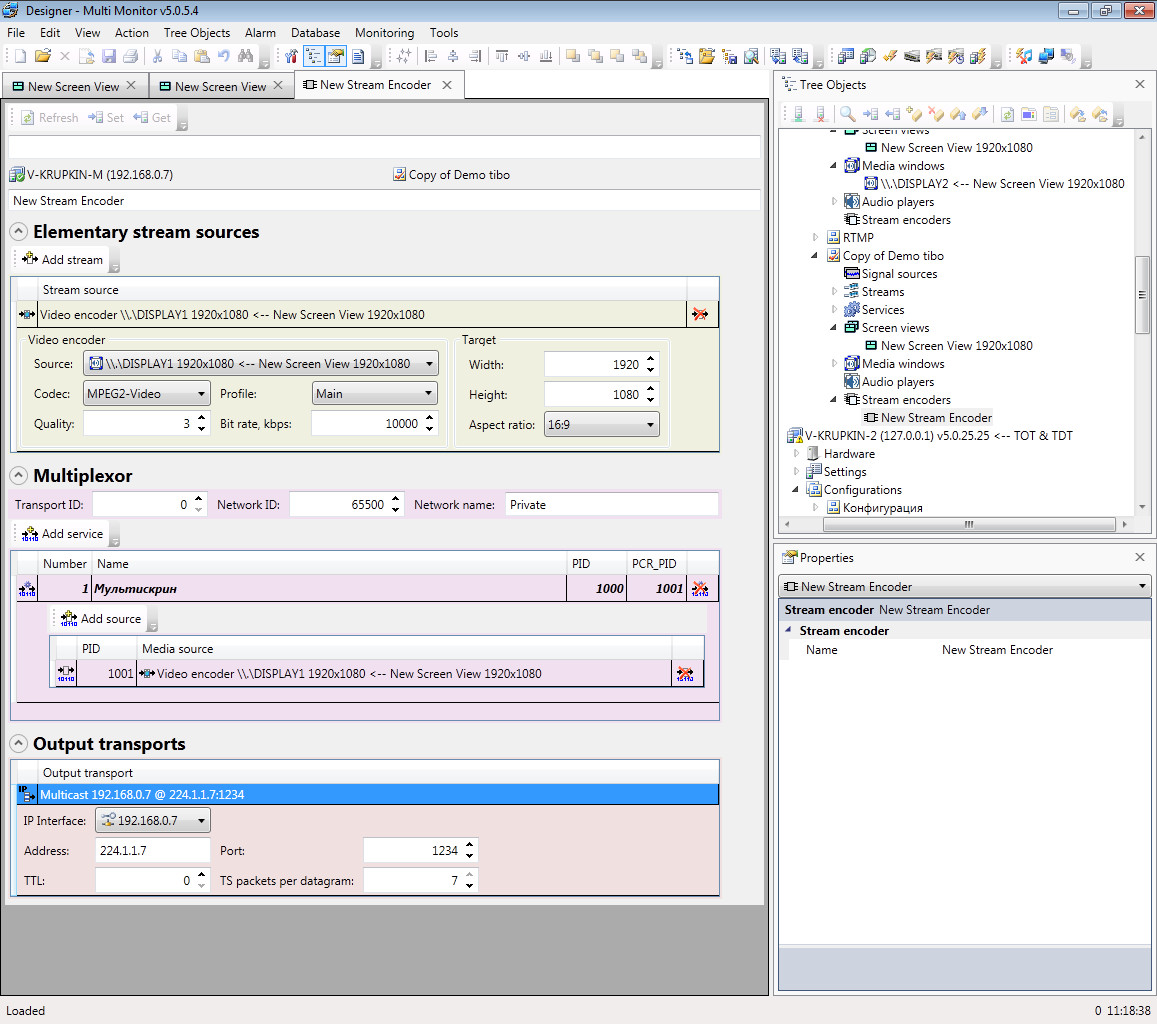

View for Mosaic layout can be customized depending in needs (Size of Video Windows, Audio Bars, Text, Clocks and etc.).

Stream Labs Monitoring MS Mosaic to IP TS Encoder 1

Input Sources for Mosaic:

  • TSoIP - H264/265 (Mpeg-2/4) / SPTS / MPTS / Multicast / Unicast - UDP TSoIP
  • Composite (NTSC, PAL, SECAM); SPTS and MPTS
  • SD-SDI Multicast and Unicast
  • HD-SDI Video encoder: MPEG-2 SDHD or H.264 SDHD
  • DVB-ASI Any customized Resolution for Mosaic from 1920x1080 till 320x240.
  • DVB-T/T2 Any customized Bitrate 200Kbit - 30 Mbit.
  • DVB-C/C2 Support for generation NIT, PAT, PMT, SDT tables
  • DVB-S/S2 Ability to specify the service name in SDT table for each channel.
  • RF Analog (NTSC, PAL, SECAM);
  • FLASH RTMP streams
  • HLS (HTTP Live Streaming Monitoring)
  • MMS&MMSH
  • RTSP

Outputs:

  • SPTS and MPTS
  • Multicast and Unicast
  • Video encoder: MPEG-2 SDHD or H.264 SDHD
  • Any customized Resolution for Mosaic from 1920x1080 till 320x240.
  • Any customized Bitrate 200Kbit - 30 Mbit.
  • Support for generation NIT, PAT, PMT, SDT tables
  • Ability to specify the service name in SDT table for each channel.

Multiplexer, included in Encoder, allows producing MPTS from a few different Mosaics or encoding sources to one mux.

Stream Labs Monitoring MS Mosaic to IP TS Encoder 2

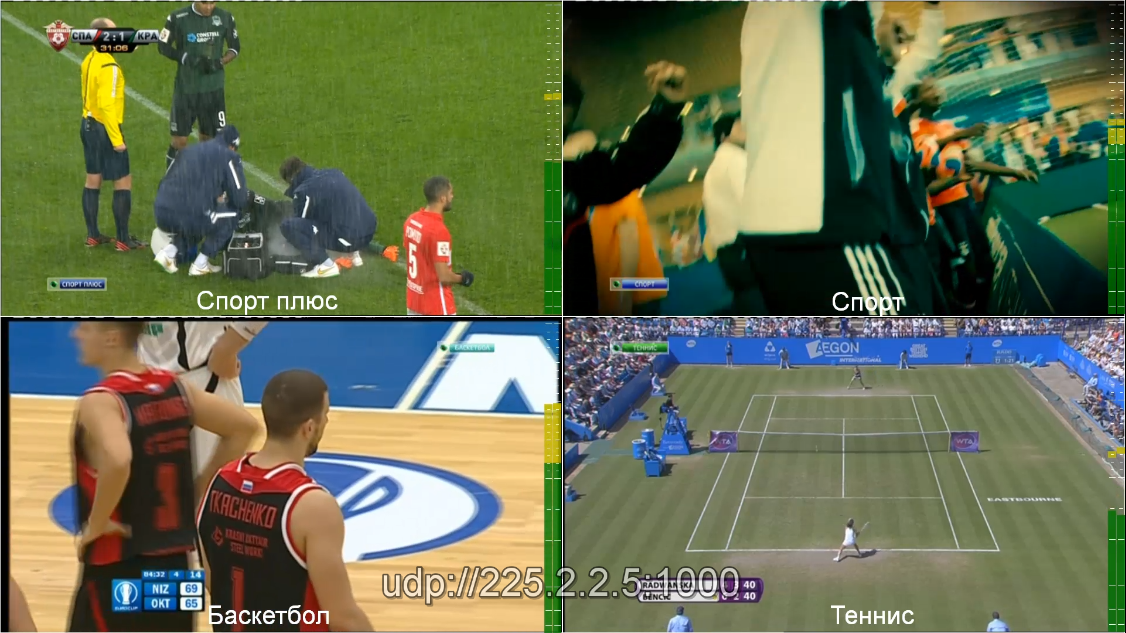

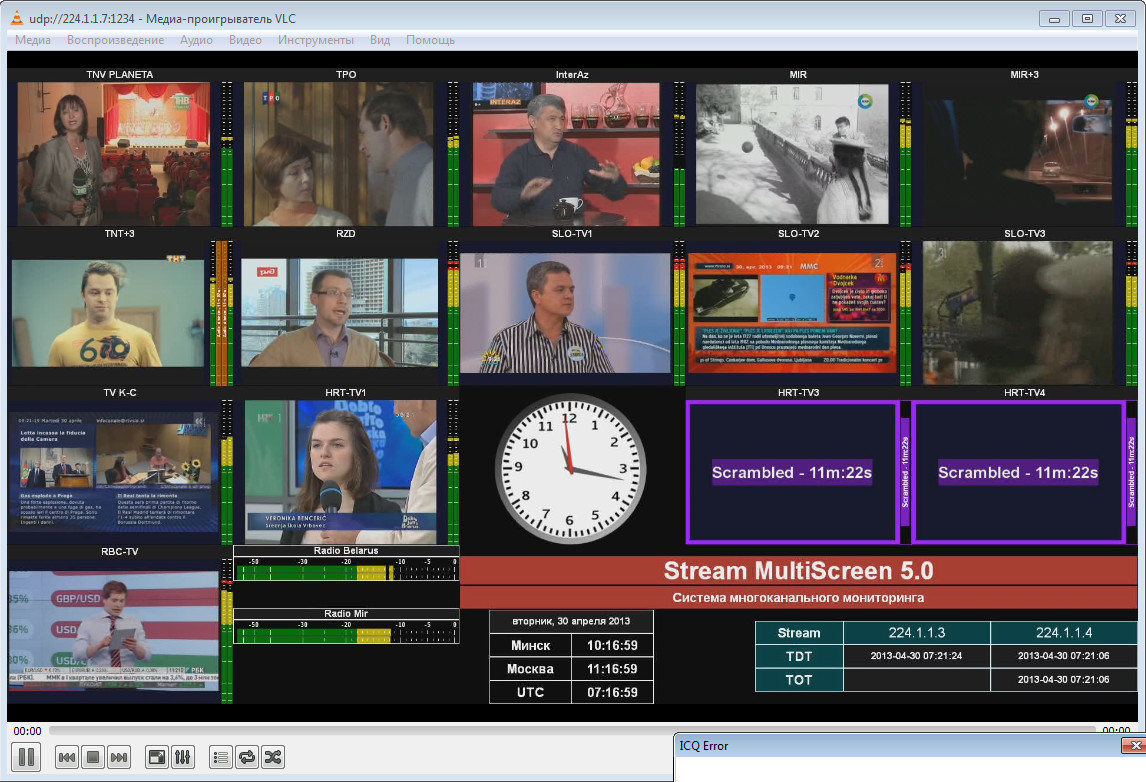

Example of encoded Mosaics, implemented by our customers

Stream Labs Monitoring MS Mosaic to IP TS Encoder 3

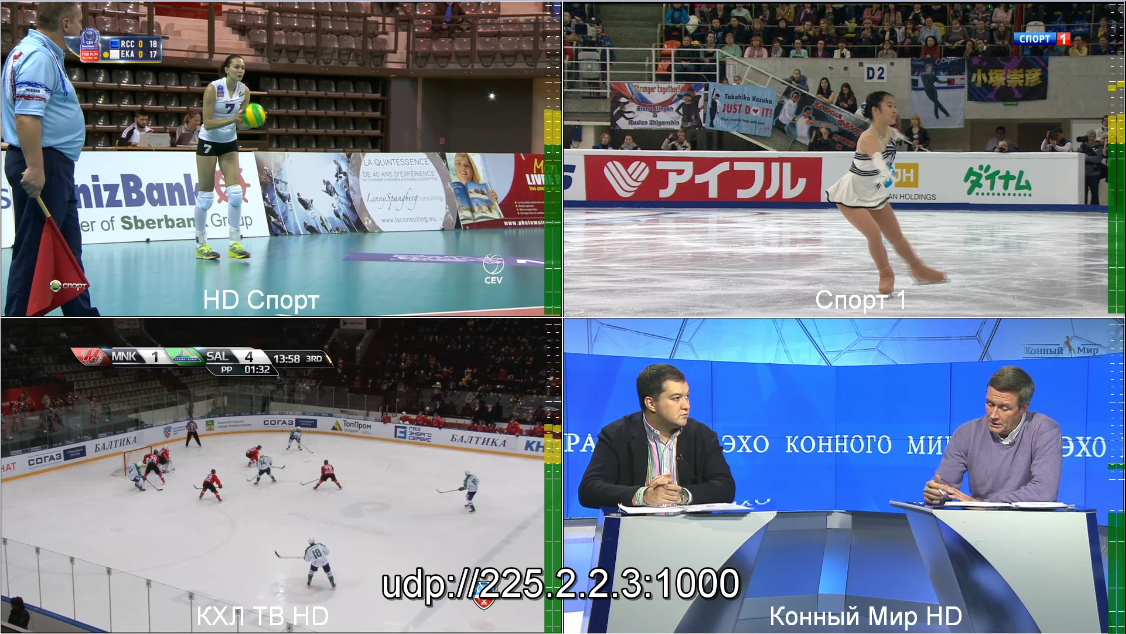

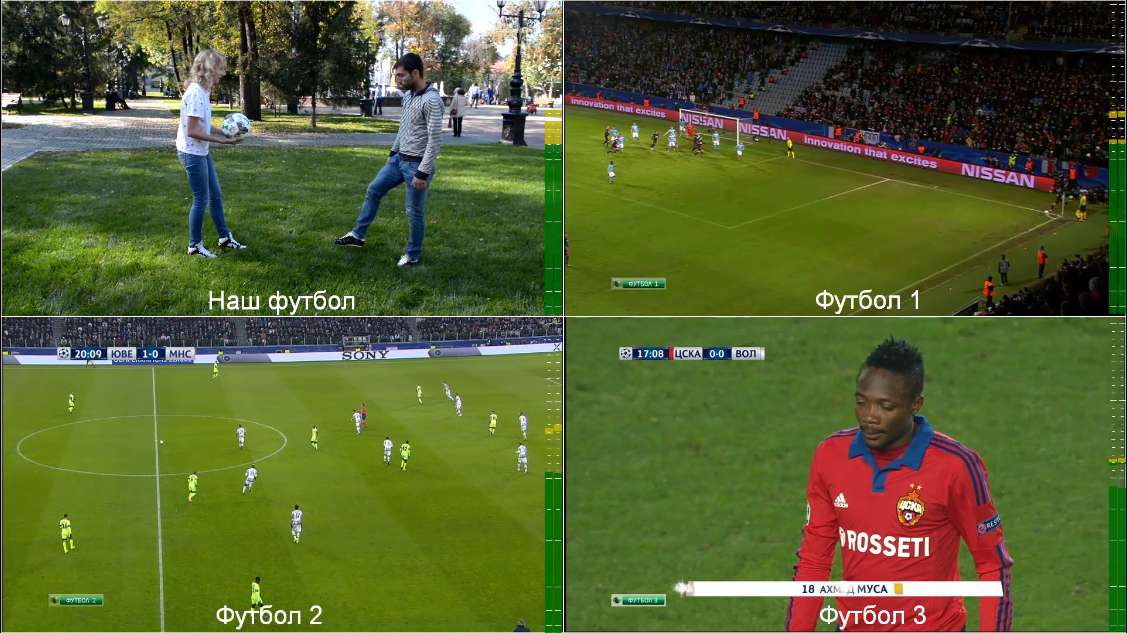

Examples of SD and HD SDI Mosaics, implemented by our Customers

Stream Labs Monitoring MS Mosaic to IP TS Encoder 4

Stream Labs Monitoring MS Mosaic to IP TS Encoder 5

Stream Labs Monitoring MS Mosaic to IP TS Encoder 6

Stream Labs Monitoring MS Mosaic to IP TS Encoder 7
