MS Sources to IP TS Encoder

MultiScreen allows encoding of video, incoming from different sources to IP TS.

Input Sources for Mosaic:

  • TSoIP - H264/265 (Mpeg-2/4) / SPTS / MPTS / Multicast / Unicast - UDP TSoIP
  • Composite (NTSC, PAL, SECAM); SPTS and MPTS
  • SD-SDI Multicast and Unicast
  • HD-SDI Video encoder: MPEG-2 SDHD or H.264 SDHD
  • DVB-ASI Any customized Resolution for Mosaic from 1920x1080 till 320x240.
  • DVB-T/T2 Any customized Bitrate 200Kbit - 30 Mbit.
  • DVB-C/C2 Support for generation NIT, PAT, PMT, SDT tables
  • DVB-S/S2 Ability to specify the service name in SDT table for each channel.
  • RF Analog (NTSC, PAL, SECAM);
  • FLASH RTMP streams
  • HLS (HTTP Live Streaming Monitoring)
  • MMS&MMSH
  • RTSP

Outputs:

  • SPTS and MPTS
  • Multicast and Unicast
  • Video encoder: MPEG-2 SDHD or H.264 SDHD
  • Any customized Resolution for Mosaic from 1920x1080 till 320x240.
  • Any customized Bitrate 200Kbit - 30 Mbit.
  • Support for generation NIT, PAT, PMT, SDT tables
  • Ability to specify the service name in SDT table for each channel.

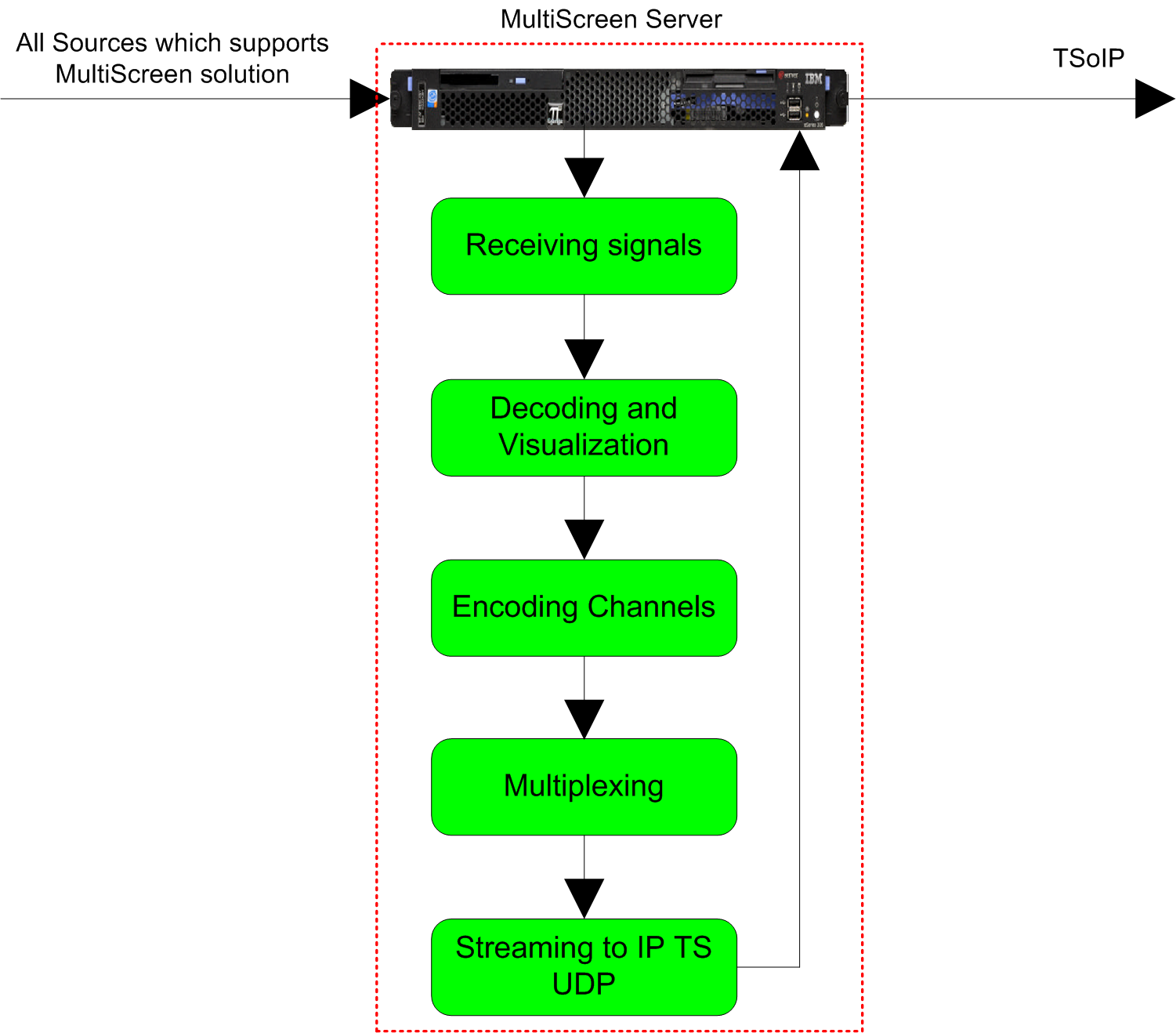

Block diagram:

Stream Labs Monitoring MS Sources to IP TS Encoder 1

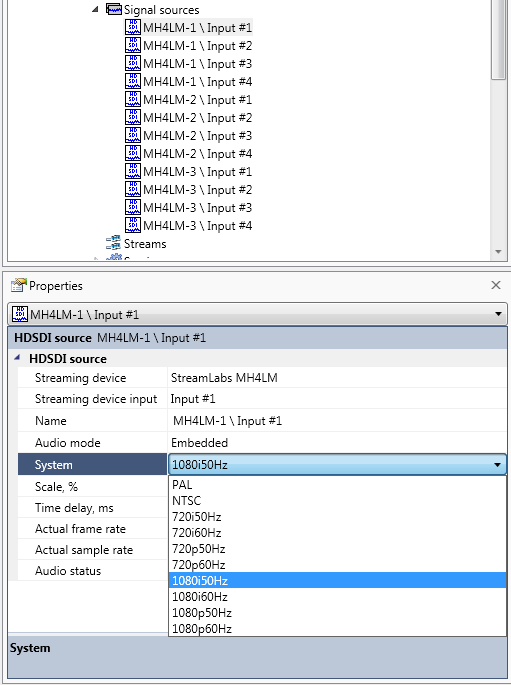

Example for SDI Sources:

Stream Labs Monitoring MS Sources to IP TS Encoder 2

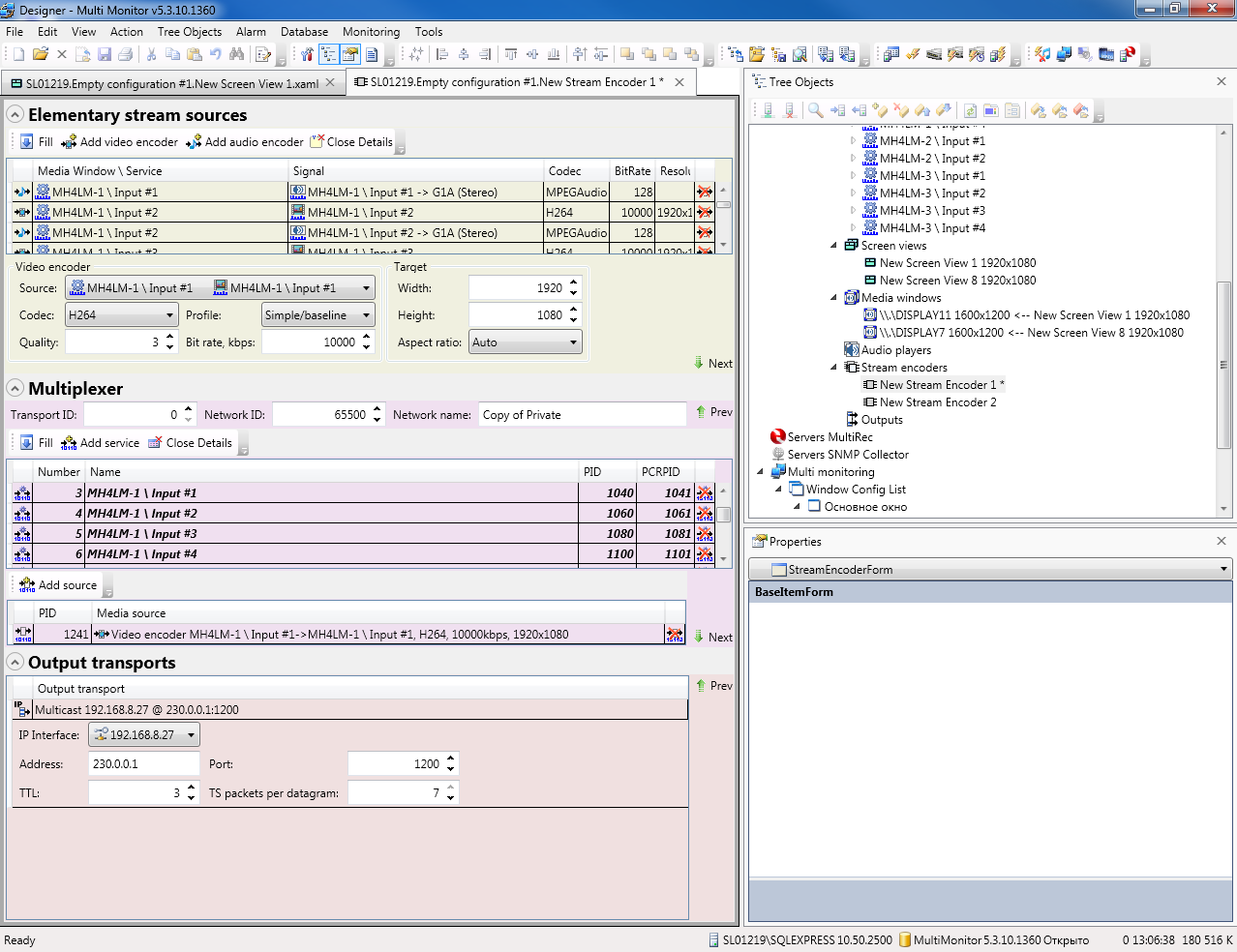

Settings of Encoder for SDI sources: Multiplexer produces MPTS from a few different Sources:

Stream Labs Monitoring MS Sources to IP TS Encoder 3

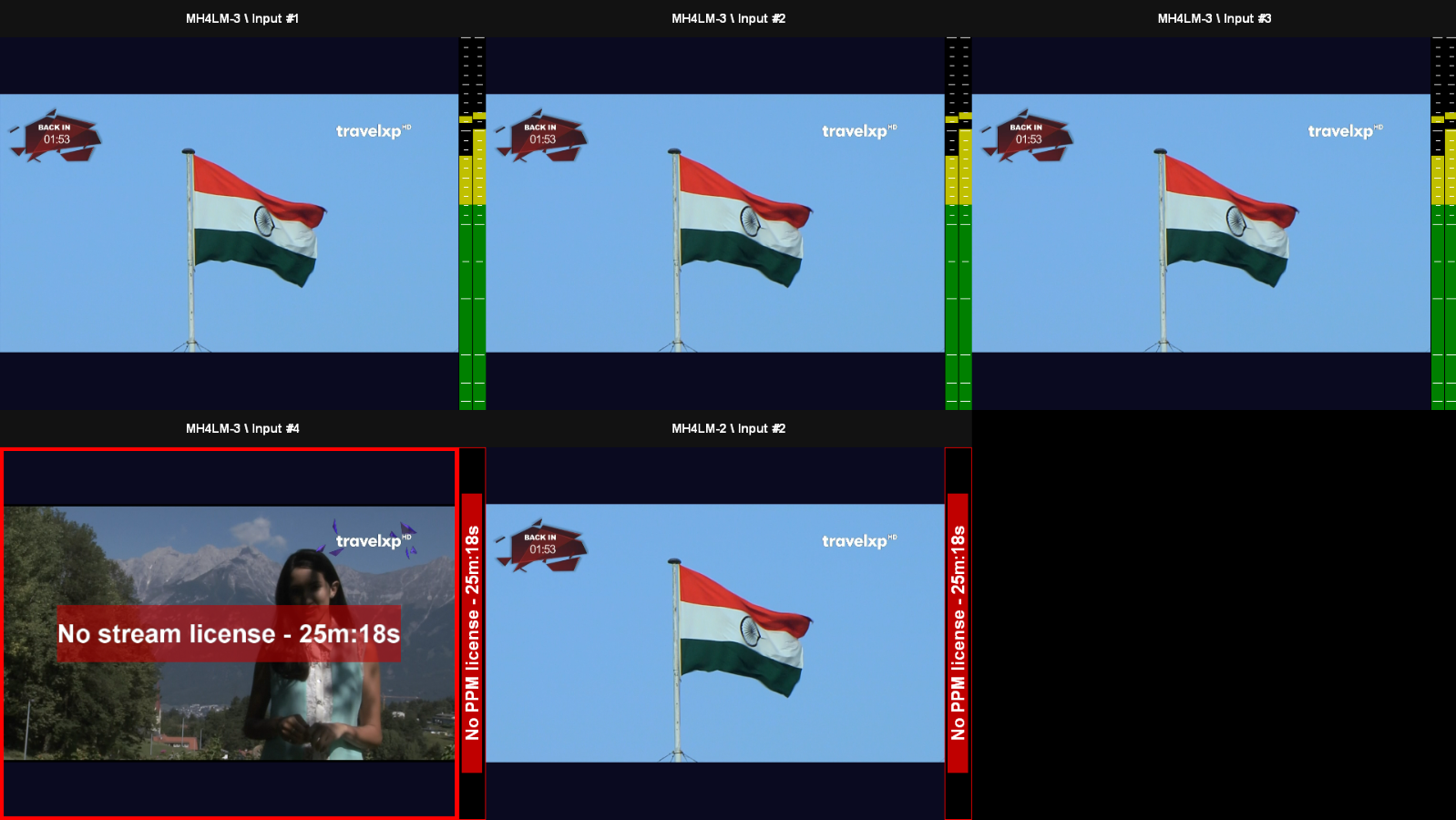

Example of Mosaic with SDI sources

Stream Labs Monitoring MS Sources to IP TS Encoder 4

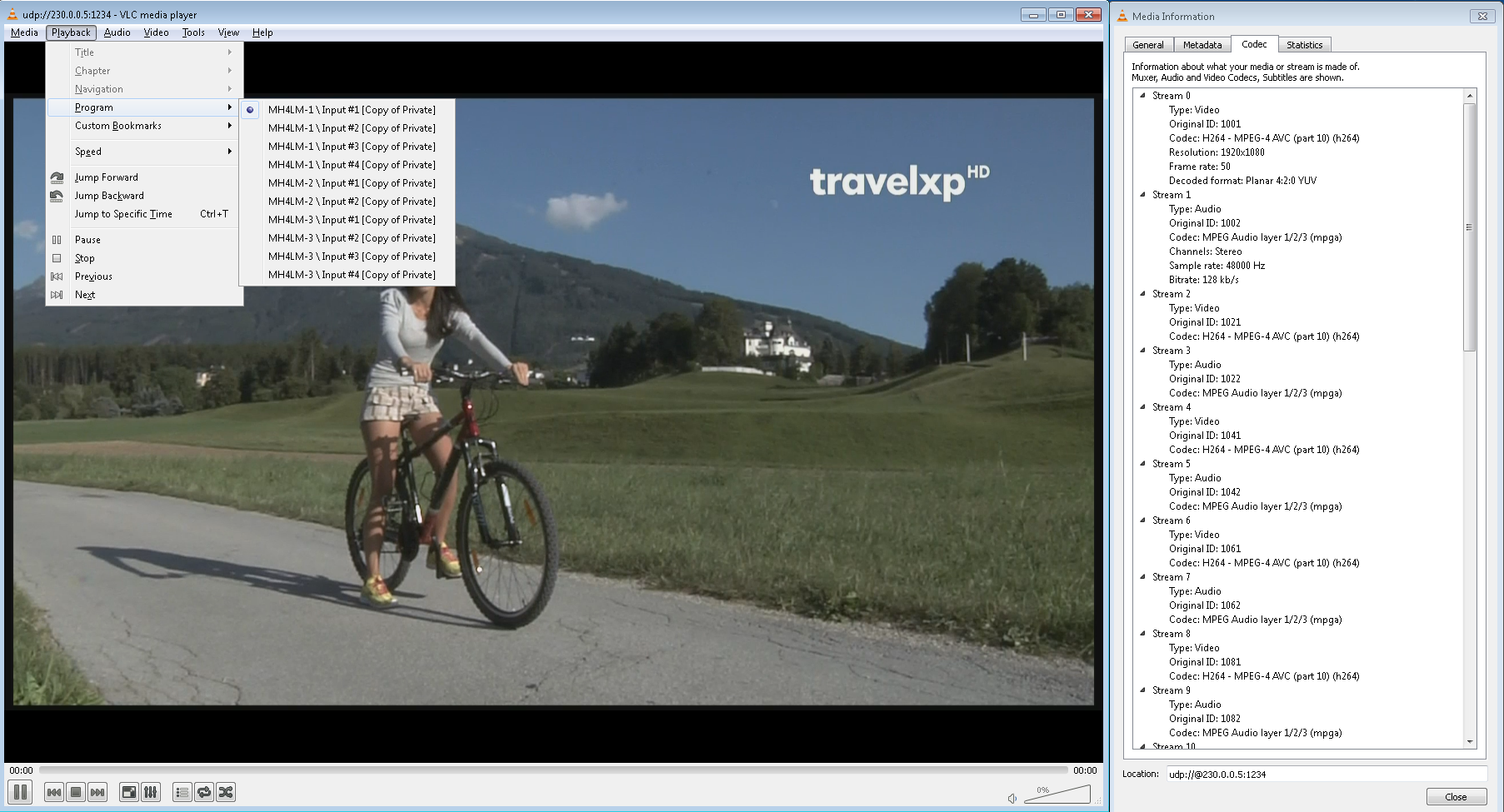

Receiving Encoded TS in VLC Player

Stream Labs Monitoring MS Sources to IP TS Encoder 5
